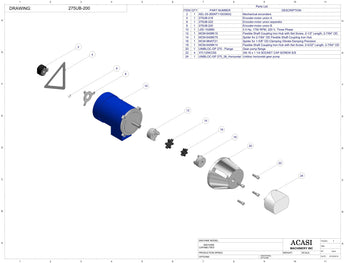

Gear Pump Filler - Model TruPump-275UB | Pump System
$ 0.00 USD
/
FILLER SYSTEM & CHASSIS | ELECTRIC PANEL TOUCH |
PUMP SYSTEM | FILLER AREA PROTECTED
| Item | Part No. | Part name | Price |
| 2 | AEL-25-260NT11S0360Q | Mechanical encoders |  |
| 4 | 275UB-218 | Encoder-motor union A | |
| 6 | 275UB-222 | Encoder-motor union separator | |
| 8 | 275UB-220 | Encoder-motor union B | |
| 10 | LEE-102860 | Motor 1/2 HP,1.725 RPM, 208-230/460V | |
| 12 | MCM-6408K15 | Flexible shaft coupling iron hub with set screw, 2-1/2" length, 2-7/64" OD |
|
| Item | Part No. | Part name | Price |
| 14 | MCM-6408K75 | Spider for 2-7/64" OD flexible shaft coupling iron hub | |
| 16 | MCM-9845T21 | Spider for 1-5/8" OD clamping vibrate-damping precision | |
| 18 | MCM-6408K14 | Flexible shaft coupling iron hub with set screw, 2-5/32" length, 2-7/64" OD | |
| 20 | UNIBLOC-GP 275 - Flange | Gear pump flange | |
| 22 | 37C125KCSS | 3/8-16 x 1-1/4 socket cap screw ss | |
| 24 | UNIBLOC-GP 275_38_Horizontal | Unibloc horizontal gear pump | |
