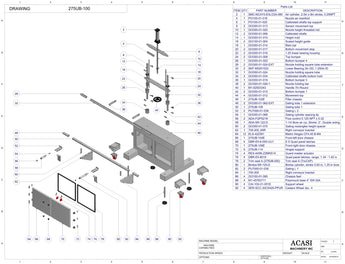

Gear Pump Filler - Model TruPump-275UB | Filler system & Chassis

Request a Quote

FILLER SYSTEM & CHASSIS | ELECTRIC PANEL TOUCH |

PUMP SYSTEM | FILLER AREA PROTECTED

Item	Part No.	Part name	Price
2	SMC-NCAY5-E3LO3A-080	Aire cylinder, 2.5in x 8in stroke, 0.25NPT
4	PI3100-01-016	Nozzle air manifold
6	PI3100-01-020	Calibrated shaft top support
8	GI3300-01-013	Sensor movement top
10	GI3300-01-020	Nozzle heihgt threaded rod
12	SKF-LJXR 20X36 ESSC2	Calibrated shafts
14	GI3300-01-010	Height nut2
16	GI3100-01-004	Scaled height guide

Item	Part No.	Part name	Price
18	GI3300-01-014	Main bar
20	GI3300-01-017	Bottom movement stop
22	GI3300-01-016	1.25 linear bearing housing
24	GI3300-01-008	Top bumper
26	GI3300-01-022	Bottom bumper 4
28	GI3300-01-024-EXT	Nozzle holding square tube extension
30	SKF-M/5201522	2in linear bearing ODx 1 1/4in ID
32	GI3300-01-024	Nozzle hold square tube

Item	Part No.	Part name	Price
34	GI3300-01-034	Calibrated shafts bottom hold
36	GI3300-01-019	Bottom bumper 3
38	GI3300-01-026	Nozzle holding bar
40	ELS-77511	Handle 7in round
42	GI3300-01-015	Bottom bumper 1
44	GI3300-01-012	Movement top
46	275UB-102E	Filler chassis
48	GI3300-01-062-EXT	Gating tube 1 extension

Item	Part No.	Part name	Price
50	275UB-108	Gating tube 1
52	PU7000-01-036	Gating L 2
54	GI3300-01-068	Gating cylinder spacing tip
56	ADA-FQPS21K	Flow control 0.125 NPT x 5-32
58	Bimba-SR-122-D	Bimba cylinder 1-1/4" bore
60	GI3300-01-070	Gating rectangles height spacer
62	700-200_MIR	Left conveyor bracket
64	ELS-422391	Metric Hinges CFA.40 B-M4

Item	Part No.	Part name	Price
66	275UB-104E	Front-left door chassis
68	DBR-E5-6-OO5-UU1	E-5 Quad panel latches
70	275UB-106E	Front-right door chassis
72	275UB-114	Hinges support
74	REX-440N-Z2NRS1A	Guard master actuator
76	DBR-E5-8018	Quad panel latches, range: 1.34 - 1.42 in
78	Trim seal A (275UB-000)	Trim seal A (TruCap)
80	Bimba-SR-125-D	Double acting cylinder

Item	Part No.	Part name	Price
82	PU7000-01-038	Gating L 1
84	700-200	Right conveyor bracket
86	GI3100-01-090	Chassis feet
88	M1-45763711	Polymount base 4" SW QIA
90	CAI-10X-01-051E	Support wheel
92	SER-SCC-30CS420-PPUR	Caster wheel dia 4
