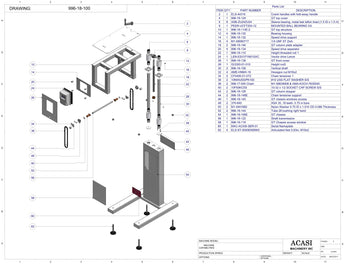

Gap Transfer GT-48 Parts | Structure

Request a Quote

STRUCTURE | BELT SYSTEM A | BELT SYSTEM B

Item	Part No.	Part Name	Price
2	ELS-44316	Crank handles with fold-away handle
4	996-18-124	GT top cover
6	ASB-ZU24ZU24	Sleeve bearing, metal bak teflon lined (1.5 ID x 1.5 H)
8	PEER-UCFT204-12	MOUNTED BALL BEARING 3/4
10	996-18-114E-2	GT top structure
12	996-18-130	Bearing housing
14	996-18-132	Speed drive support
16	M1-08060717	1/4 UNF ST Zerk
18	996-18-146	GT column plate adapter

Item	Part No.	Part Name	Price
20	996-18-134	Speed drive separator
22	996-18-110	Height threaded rod 1
24	LEN-ESV371N01SXC	Vector drive Lenze
26	996-18-138	GT front cover
28	GI3300-01-010	Height nut 2
30	996-18-108	Vertical shaft
32	AME-HNMX-16	Hexagon nut M16x2
34	CF4400-01-072	Chain tensioner 1
36	10NWUSS/PK100	#10 USS FLAT WASHER S/S

Item	Part No.	Part Name	Price
38	996-17-000 Chain	M1-58639006 & AMA-KOCH-7635040
40	10F50KCSS	10-32 x 1/2 SOCKET CAP SCREW S/S
42	996-18-128	GT column stopper
44	996-18-148E	Chain tensioner support
46	996-18-140	GT chassis windows access
48	370-640	ASA 35, 18 teeth, 0.75 in bore
50	M1-5401682	Nylon washer 0.75 ID x 1.010 OD 0.066 Thickness
52	996-18-144	Tube 28 bushing right hand
54	996-18-106E	GT chassis

Item	Part No.	Part Name	Price
56	996-18-122	Shaft transmission
58	996-18-118	GT chassis access window
60	MAC-ACASI-SER-01	Serial nameplate
62	ELS-ST-0000EN569/0	Articulated feet 5,93in, M16x2
