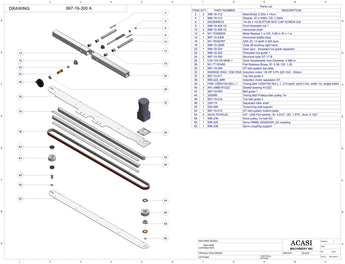

Gap Transfer GT-48 Parts | Belt System A

STRUCTURE | BELT SYSTEM A | BELT SYSTEM B

Item	Part No.	Part Name
2	996-18-312	MetricRuler 0.25in x 14cm
4	996-18-310	Washer, ID 0.406in, OD 1.250in
6	25C50KBCS	1/4-20 x 1/2 BUTTON SOCKET CAP SCREW S/S
8	996-18-304 V2	Front threaded rod 1
10	996-18-308 V2	Horizontal shaft
12	M1-75368829	Metal backed 1 in OD, 0.88 in ID x 1 in
14	997-19-320E	Horizontal shafts base
16	M1-78340767	ASA 35, 14 teeth 0.500 bore
18	996-18-326R	Tube 28 bushing right hand
20	996-18-324	Gear spur - threaded rod guide separator

Item	Part No.	Part Name
22	996-18-322	Threaded rod guide 1
24	997-19-350	Structure tube GT-17 B
26	ELS-972651	Solid handwheels hub diameter: 0.980 in
28	M1-77153450	Flat washer brass; ID 0.56; OD 1.25
30	997-19-306	GT belt system top plate
32	5IK90GE-SW2 / 5GE15SA	Induction motor 1/8 HP 3-Ph 220 VAC - 60rpm
34	997-19-217	Top belt guide 2
36	995-222_MIR	Induction motor separator GT
38	FNS-1050H100 NG-L-1	Timing belt 1050H100 NG-L-1, 210 teeth, pitch 0.5in, width 1in, single sided
40	APL-MBB-R12ZZ	Sealed bearing R12ZZ

Item	Part No.	Part Name
42	997-19-500	Belt guide 1
44	200080	Timing belt Pulleys-Idler pulley 1in
46	997-19-216	Top belt guide 1
48	200110	Separator-Idler shaft
50	550-580	Tensioning belt support
52	997-19-215	GT belt system bottom plate
54	WUR-75VWUSI	3/4" USS Flat washer, ID 0.812", OD 1.875", thick 0.102"
56	996-236	Drive pulley 1in belt SO
58	995-220	Servo R88M_KE20030H_S2 coupling
60	996-238	Servo coupling support
