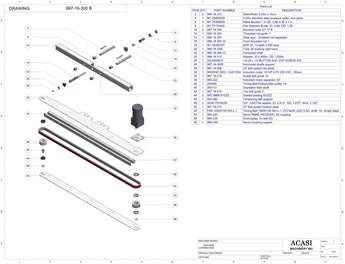

Gap Transfer GT-48 Parts | Belt System B

STRUCTURE | BELT SYSTEM A | BELT SYSTEM B

Item	Part No.	Part Name
2	996-18-312	MetricRuler 0.25in x 14cm
4	M1-35462548	0.50in stainless steel pressure collar, one piece
6	M1-75368829	Metal backed 1 in OD, 0.88 in ID x 1 in
8	M1-77153450	Flat washer brass; ID 0.56; OD 1.25
10	997-19-350	Structure tube GT-17 B
12	996-18-322	Threaded rod guide 1
14	996-18-324	Gear spur - threaded rod guide separator
16	996-18-305 V2	Front threaded rod 1
18	M1-78340767	ASA 35, 14 teeth 0.500 bore
20	996-18-326L	Tube 28 bushing left hand

Item	Part No.	Part Name
22	996-18-308 V2	Horizontal shaft
24	NOF-0.375-01-023	Washer, ID 0.406in, OD 1.250in
26	25C50KBCS	1/4-20 x 1/2 BUTTON SOCKET CAP SCREW S/S
28	997-19-320E	Horizontal shafts base
30	997-19-306	GT belt system top plate
32	5IK90GE-SW2 / 5GE15SA	Induction motor 1/8 HP 3-Ph 220 VAC - 60rpm
34	997-19-218	Acetal belt guide 1in
36	995-222	Induction motor separator GT
38	200080	Timing belt Pulleys-Idler pulley 1in
40	200110	Separator-Idler shaft

Item	Part No.	Part Name
42	997-19-216	Top belt guide 2
44	APL-MBB-R12ZZ	Sealed bearing R12ZZ
46	550-580	Tensioning belt support
48	WUR-75VWUSI	3/4" USS Flat washer, ID 0.812", OD 1.875", thick 0.102"
50	997-19-215	GT belt system bottom plate
52	FNS-1050H100 NG-L-1	Timing belt 1050H100 NG-L-1, 210 teeth, pitch 0.5in, width 1in, single sided
54	995-220	Servo R88M_KE20030H_S2 coupling
56	996-236	Drive pulley 1in belt SO
58	996-238	Servo coupling support
