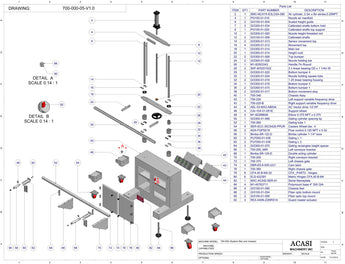

FILLER SYSTEM & CHASSIS | ELECTRIC PANEL TOUCH |
| Item | Part No. | Part name | Price |
| 2 | SMC-NCAY5-E3LO3A-080 | Aire cylinder, 2.5in x 8in stroke, 0.25NPT |  |
| 4 | GI3100-01-016 | Nozzle air manifold | |
| 6 | GI3100-01-004 | Scaled height guide | |
| 7 | GI3100-01-034 | Calibrated shafts bottom hold | |
| 8 | PI3100-01-020 | Calibrated shaft top support | |
| 10 | GI3300-01-020 | Nozzle heigth threaded rod | |
| 12 | SKF-LJXR 20X36 ESSC2 | Calibrated shafts |
|
| 14 | GI3300-01-013 | Sensor movement top | |
| Item | Part No. | Part name | Price |
| 16 | GI3300-01-012 | Movement top | |
| 18 | GI3300-01-014 | Main bar | |
| 20 | GI3300-01-010 | Height nut 2 | |
| 22 | GI3300-01-008 | Top bumper | |
| 24 | GI3300-01-026 | Nozzle holding bar | |
| 26 | ELS-77511 | Handle 7in round | |
| 28 | SKF-M/5201522 | 2in linear bearing ODx 1 1/4in ID | |
| 29 | GI3300-01-022 | Bottom bumper 4 | |
| Item | Part No. | Part name | Price |
| 30 | GI3300-01-024 | Nozzle hold square tube | |
| 32 | GI3300-01-016 | 1.25 linear bearing housing | |
| 34 | GI3300-01-019 | Bottom bumper 3 | |
| 36 | GI3300-01-015 | Bottom bumper 1 | |
| 38 | GI3300-01-017 | Bottom movement stop | |
| 40 | 700-340 | Chassis assy | |
| 42 | 700-220 | Left support variable frequency drive | |
| 43 | 700-220-B | Right support variable frequency drive | |
| Item | Part No. | Part name | Price |
| 44 | AEL-53-MX2-AB004 | AC Vector driver 1/2 HP | |
| 46 | CAI-10X-01-051E | Support wheel | |
| 48 | M1-82288648 | Elbow 0.375 NPT x 0.375 | |
| 50 | GI3300-01-068 | Gating cylinder spacing tip | |
| 52 | 700-260 | Gating tube 1 | |
| 54 | SER-SCC-30CS420-PPUR | Caster wheel dia 4 | |
| 56 | ADA-FQPS21K | Flow control 0.125 NPT x 5-32 | |
| Item | Part No. | Part name | Price |
| 58 | BImba-SR-122-D | Bimba cylinder 1-1/4" bore | |
| 60 | PU7000-01-038 | Gating L 1 | |
| 62 | PU7000-01-036 | Gating L 2 | |
| 64 | GI3300-01-070 | Gating rectangles height spacer | |
| 66 | 700-200_MIR | Left conveyor bracket | |
| 68 | Bimba-SR-125-D | Double acting cylinder | |
| 70 | 700-200 | Right conveyor bracket |
|
| 72 | 700-370 | Left chassis gate | |
| Item | Part No. | Part name | Price |
| 74 | DBR-E5-6-OO5-UU1 | Cam latch | |
| 76 | 700-360 | Right chassis gate | |
| 78 | CFA.40 B-M4 02 | CFA._PART2 - Hinges | |
| 80 | ELS-422391 | Metric Hinges CFA.40 B-M4 | |
| 82 | MAC-ACASI-SER-01 | Serial Nameplate | |
| 84 | M1-45763711 | Polymount base 4" SW QIA | |
| 86 | GI3100-01-090 | Chassis feet | |
| 88 | GI3100-01-054 | Fiber optic bottom mount | |
| 90 | GI3100-01-056 | Fiber optic top mount | |
| 92 | REX-440N-Z2NRS1A | Guard master actuator | |
