Gear Pump Filler - Model Trupump-8 | Electric Panel Touch

Request a Quote

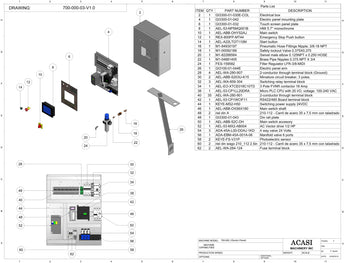

FILLER SYSTEM & CHASSIS | ELECTRIC PANEL TOUCH |

PUMP SYSTEM

Item	Part No.	Part name	Price
2	GI3300-01-030E-COL	Electric Panel Box
4	GI3300-01-042	Electric panel mounting plate
6	GI3300-01-032	Touch screen panel plate
8	AEL-53-NP5MQ001B	HMI 5.7" monochrome
10	AEL-ABB-OHYS2AJ	Main switch
12	REX-800FP-MT44	Emergency Stop Push Button
14	AEL-A22LTGT110M	Start button
16	M1-84930197	Pneumatic Hose Fittings Nipple: 3/8-18 NPT

Item	Part No.	Part name	Price
18	M1-00092189	Safety lockout Valve 0.375X0.375
20	M1-82288564	Swivel male elbow 0.125NPT x 0.250 HOSE
22	M1-04881405	Brass Pipe Nipples 0.375 NPT X 3/4
24	FES-159582	Filter Regulator LFR-3/8-MIDI
26	GI3100-01-044E	Electric panel arm
28	AEL-WA-280-907	2-conductor through terminal block (Ground)
30	AEL-ABB-S203U-K15	Miniature circuit breaker, 3 poles
34	AEL-WA-859-304	Switching relay terminal block

Item	Part No.	Part name	Price
38	AEL-EO-XTCE018C10TD	3 Pole FVNR contactor 18 Amp
40	riel din A	210-112 - Carril de acero 35 x 7,5 mm con taladrado
42	AEL-WA-280-901	2-conductor through terminal block
44	AEL-53-CP1LL20DRA	Micro PLC CPU with 20 I/O, voltage: 100-240 VAC
46	AEL-53-CP1WCIF11	RS422/485 Board terminal block
48	GI3300-01-043	Din rail plate
50	KEYE-MS2-H50	Switching power supply 24VDC
52	AEL-ABB-OXS6X180	Main switch shaft

Item	Part No.	Part name	Price
56	AEL-ABB-S2C-DH	Main switch accesory
58	AEL-53-MX2-AB004	AC Vector drive 1/2 HP
62	ADA-45A-L00-DDAJ-1KD	4 way valve 24 Volts
66	ADA-EBM-45A-001A-06	Manifold valve 6 ports
68	T1-1010G-11.353
70	riel din wago 210-112 2.5in	210-112 - Carril de acero 35 x 7,5 mm con taladrado
72	AEL-WA-284-124	Fuse terminal block
74	KEYE-FS-V31P	Photoelectic sensor
