Piston Filler - Model Trupiston-4-Vert Piston & Valve System

Request a Quote

TUBE STRUCTURE & CHASSIS | PISTON & VALVE SYSTEM

ELECTRIC PANEL TOUCH | TANK

_______________________________________________

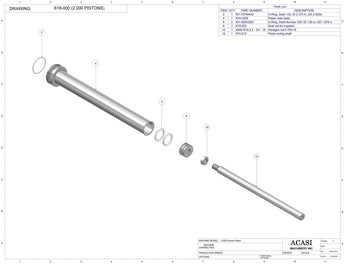

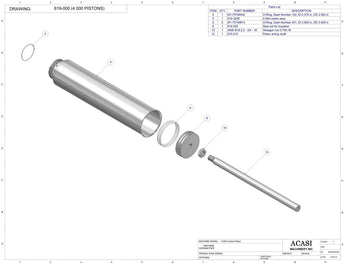

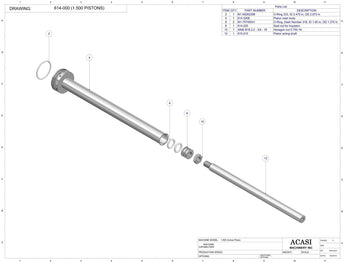

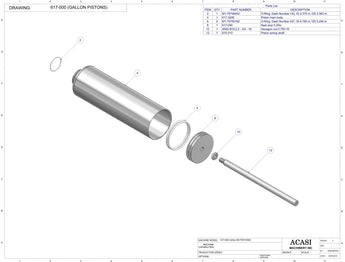

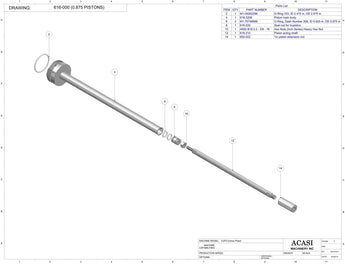

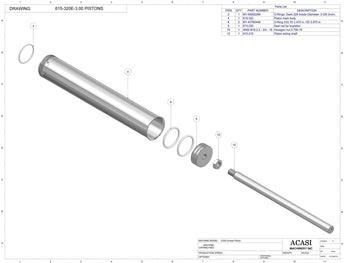

PISTONS

ID 7/8" (0.45 to 4.5 oz) ID 1-3/8" (1.1 to 11 oz)

ID 1-7/8" (2.1 to 21 oz) ID 2-7/8" (5.0 to 50 oz)

ID 4-1/4" (10.9 to 109 oz) ID 5-1/4" (16.7 to 167 oz)

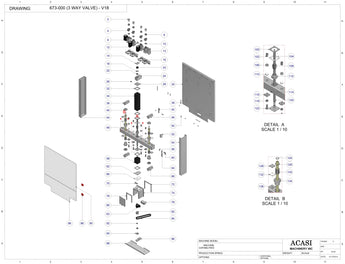

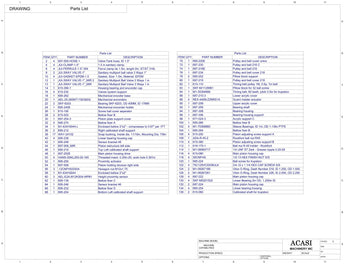

Item	Part No.	Part Name	Price
2	697-000-HOSE-1	Tank-Valve connection system
4	JUI-CLAMP-1.5"	1.5 in sanitary clamp
6	JUI-FERRULE-1.5"-304	Ferrul clamp 1.5in, lenght 2in
8	JUI-3WAY VALVE-1"	Sanitary multiport ball valve 3 ways 1"
10	JUI-GASKET-EPDM-1.5	Gasket, Size: 1.5in, Material: EPDM
12	JUI-3WAY VALVE-1"	Sanitary multiport ball valve 3 ways 1"
13	JUI-3WAY VALVE-1"	Sanitary multiport ball valve 3 ways 1"
14	615-390-1	Housing bearing and enconder cap

Item	Part No.	Part Name	Price
16	615-230	Valves system support
18	695-262	Mechanical encoder base
20	AEL-25-260NT11S0360Q	Mechanical enconders
22	SKF-6203	Bearing SKF-6203, OD 40mm, ID 17mm
24	695-240E	Mechanical encoder holder
26	615-190	Screw ball cover separator
28	615-022	Bellow fixer B
30	697-254-3	Piston plate support cover

Item	Part No.	Part Name	Price
32	695-270	Bellow fixer A
34	M1-63416044-L	Enclosed bellow 2"x2" - compresses to 0.67" per 1FT
36	695-212	Right calibrated shaft support
38	WAY-24102	Snap bushing, ID 11/16in, Mounting Dia. 7/8in
40	695-236	Linear bearing housing cap
42	695-248	Sensor bracket 48
44	697-006_MIR	Piston structure left side
46	695-210	Top left calibrated shaft support

Item	Part No.	Part Name	Price
48	697-252E	Main piston housing drive
50	HANS-SSKL250-20-165	Threaded insert, 0.25in-20, work hole 0.391in
52	695-250	Proximity activator
54	697-006	Piston structure right side
56	.12CNFHS/D934	Hexagon nut M12x1.75
58	M1-63416044	Enclosed bellow 2"x2"
60	AEL-E2A-M12KS04-WPB1	Height proximity sensor
62	695-139	Bellow fixer C

Item	Part No.	Part Name	Price
64	695-246	Sensor bracket 46
66	695-232	Bellow fixer D
68	695-204	Bottom Left calibrated shaft support
70	695-220E	Pulley and belt cover union
72	697-230	Pulley and belt 216 C
74	697-216E	Pulley and belt 216
76	697-234	Pulley and belt cover 218
78	695-252	Pillow block support

Item	Part No.	Part Name	Price
80	697-218	Pulley and belt cover 218
82	615-110	Timing belt pulley 16t, 0.5p, 1in belt
83	SKF-M/1129961	Pillow block for 32 ball screw
84	M1-35394899	Timing belt, 60 teeth, pitch 0.5 in for trupiston
86	697-210-3	Lower acrylic cover
88	REX-440N-Z2NRS1A	Guard master actuator
90	697-208	Upper acrylic cover
92	697-256	Bearing shaft

Item	Part No.	Part Name	Price
94	697-308	Bearing housing
96	697-306	Bearing housing support
98	671-024-3	Acrylic support C
100	695-266	Bellow fixer B
102	M1-75368860	Sleeve Bearings, ID 1in; OD 1-1/8in PTFE
104	695-264	Bellow fixer B
106	615-200	Piston adjusting screw support A
108	ADA-R-45-2	Rockford ball nut R45

Item	Part No.	Part Name	Price
110	615-380	Piston adjusting screw support B
112	616-170-1	Ball nut R-45 holder - Rockford
114	M1-08060717	1/4 UNF ST Zerk - Grease nipple 0.25-28
116	615-080	Main piston housing cap
118	50CNFHS	1/2-13 HEX FINISH NUT S/S
120	695-224	Ball screw for trupiston
122	75C125HCSS/BULK	3/4-10 x 1-1/4 HEX CAP SCREW S/S
124	M1-09267188	Viton O-ring, Dash Number 218, ID 1.250, OD 1.500

Item	Part No.	Part Name	Price
126	M1-09267261	Viton O-ring, Dash Number 226, ID 2.000, OD 2.250
128	697-222	Main piston housing cap
130	SKF-M5201522	Linear bearing 2in OD, 1.250in ID
132	697-224	Main piston housing cap
134	695-254	Linear bearing housing
136	610-040-3	Mechanical enconder holder
