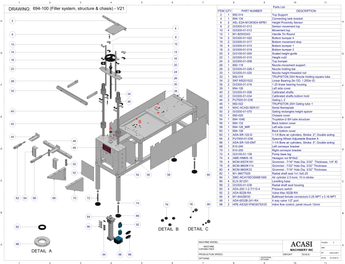

Piston Filler - Model Trupiston-2-SH-V21 Filler System, Structure & chassis



FILLER SYSTEM,STRUCTURE & CHASSIS PISTON MOVEMENT SYSTEM | ELECTRIC PANEL TOUCH | STANDARD TANK



Item Part No. Part Name Price
2 692-014 Top Support
4 694-134 Connecting Tank Bracket
6 AEL-E2A-M12KS04-WPB1 Height Proximity Sensor
8 GI3300-01-013 Sensor Movement Top
10 GI3300-01-012 Movement Top
12 M1-82503343 Handle 7in Round
14 GI3300-01-022 Bottom Bumper 4
15 GI3300-01-017 Bottom Movement Stop
Item Part No. Part Name Price
16 GI3300-01-015 Bottom Bumper 1
18 GI3300-01-019 Bottom Bumper 3
20 GI3100-01-004 Scaled Height Guide
22 GI3300-01-010 Height Nut 2
24 GI3300-01-008 Top Bumper
26 692-118 Nozzle Movement Support
28 GI3300-01-026-1 Nozzle Holding Bar
30 GI3300-01-020 Nozzle Height Threaded Rod
32 692-016 Nozzle Holding Square Tube
Item Part No. Part Name Price
34 SKF-M52001522 Linear Bearing 2in OD, 1.250 ID
36 GI3300-01-016 1.2 Linear Bearing Housing
38 694-126 Left Side Cover
40 GI3300-01-006 Calibrated Shaft
42 GI3300-01-034 Calibrated Shaft Bottom Hold
44 PU7000-01-036 Gating L 2
46 692-022  Gating tube 1
48 MAC-ACASI-SER-01 Serial Nameplate
Item Part No. Part Name Price
50 GI3300-01-070 Gating Rectangles Height Spacer
52 692-020 Chassis Cover
54 694-104E Tube Structure
56 694-132 Back Bottom Cover
58 694-126_MIR Left Side Cover
60 694-128 Back Bottom Cover
62 ADA-SR-122-D 1-1/4 Bore Air Cylinders, Stroke: 2", Double Acting
64 PU7000-01-038 Spacing Wheel Adjustable Bracket A
Item Part No. Part Name Price
66 ADA-SR-125-DNT 1-1/4 Bore Air Cylinders, Stroke: 5", Double Acting
68 610-240 Left Conveyor Bracket
70 610-250 Right Conveyor Bracket
72 GI3100-01-138 Pump Base Leg
74 AME-HNMX-16 Hexagon Nut M16X2
76 MCM-9307K181 Grommet- 7/16" Hole Dia, 3/32" Thickness, 1/4" ID
78 MCM-9600K114 Grommet- 7/32" Hole Dia, 3/32" Thickness
80 MCM-9600K33 Grommet- 7/16" Hole Dia, 3/32" Thickness,
Item Part No. Part Name Price
82 M1-36677029 Radial Shaft Seal 1x1.5x0.25
84 SMC-NCAY5EO006B1000 Air Cylinder 2.5 Bore, 10 in Stroke
86 ELS-301251 Lavelling  Base
88 GI3300-01-038 Radial Shaft Seal Housing
90 ADA-200-1-2-7/115-4 Pressure Switch
92 ADA-922B-RA Valve Mac 922B-RA
94 M1-84426030 Bulkhead Female Connectors 0.25 NPT X 0.16NPT
96 ADA-6532B-241-RA 4 Way Valve1/2" Port
98 HPE-AS3201FN0307SX35 Inline Flow Control, Panel Mount 12mm
