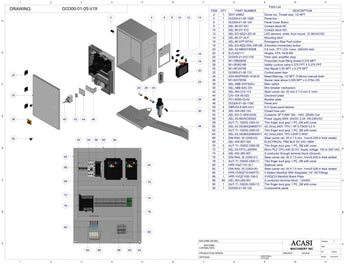

Piston Filler - Model Trupiston-2-SH-V21 Electric Panel Touch

Request a Quote

FILLER SYSTEM,STRUCTURE & CHASSIS | PISTON MOVEMENT SYSTEM | ELECTRIC PANEL TOUCH | STANDARD TANK

Item	Part No.	Part Name	Price
2	WAY-24602	Dome nut, Thread size: 1/2 NPT
4	GI3300-01-05-102E	Panel box
6	GI3300-01-05-124	Panel cover brand
8	AEL-60-D7-X01	NC contact
10	AEL-60-D7-X10	NO contact
12	AEL-EO-M22-LED-W	LED element, white, front mount, 12-30VAC/DC
14	AEL-60-D7-ALP	Mounting latch
16	AEL-60-D7P-MT44	Emergency stop push button

Item	Part No.	Part Name	Price
18	AEL-EO-M22-DDL-GR-GB	2-function momentary button
20	AEL-53-NB5QTW00B	5.6 inch, TFL LCD, Color, 320/234 dots
22	ELS-422111	Hinges, CFA. 49 B-M5
24	GI3300-21-012 V16	Fiber optic amplifier assy
26	M1-79802609	Pneumatic hose fitting connector, thread size 0.375 MPT
28	M1-00092189	Safety Lockout Valve 0.375 FPT x 0.375 FPT
30	M1-09724709	Hex Nipple, Male Thread Size 0.50 NPT x 0.375 NPT
32	GI3300-01-05-112	Control panel door

Item	Part No.	Part Name	Price
34	ADA-MGFR400-15-M-W	Mead filter/reg. 1/2 NPT, 5 Micron manuel drain
36	M1-62378559	Swivel male elbow 0.500 NPT x 0.375in OD
38	AEL-ABB-OHYS2AJ	N3R Disc with handle
40	AEL-ABB-S2C-DH	Main switch accesory
42	AEL-WA-210-112	Steel carrier rail, 35 X 7.5 mm, 1mm/0.039 in thick slotted
44	CAI-10X-09-022	Disconnect plate
46	PC1-8000-03-02	Breaker plate
48	GI3300-01-05-110E	Panel arm

Item	Part No.	Part Name	Price
50	DBR-E5-6-005-UU1	E-5 Quad panel latches
52	AEL-WA-284-124	Closed fuse port
54	AEL-EO-3-1800-023A	Contactor 3P FVNR 18A Frame C 1NO 190/50, 220/60 Coil
56	AEL-53-S8VKC06024	Power supply 60W, 24VDC 2.5A 100-240VAC
58	AUT-T1-1020G-3300-01	Thin finger duct grey 1 PC, 2M with cover
60	AEL-53-3G3MX2AB007V1	AC Drive, 240V 1PH, 1 HP 0.75KW
62	AUT-T1-1020G-3300-03	Thin finger duct grey 1 PC, 2M with cover
64	AEL-53-3G3MX2AB004V1	AC Drive, 240V 1PH, 1/2HP 0.4KW

Item	Part No.	Part Name	Price
66	DIN RAIL 35 (GI3300-03)	Steel carrier rail, 35 X 7.5 mm, 1mm/0.039 in thick slotted
68	AEL-WA-857-304	Electrical TRM BLK DC 24V, 10MA
70	AUT-T1-1020G-3300-05	Thin finger duct grey 1 PC, 2M with cover
72	AEL-53-CP1LL20DRA	Micro PLC CPU with 20 I/O, Supply voltage: 100 to 240 VAC
74	AEL-WA-280-907	2-conductor through terminal block (Ground)
76	DIN RAIL 35 (3300-01)	Steel carrier rail, 35 X 7.5 mm, 1mm/0.039 in thick slotted
78	AUT-T1-1020G-3300-11	Thin finger duct grey 1 PC, 2M with cover
80	HPE-VQZ1151-5L1	Solenoid valve

Item	Part No.	Part Name	Price
82	DIN RAIL 35 (3300-05)	Steel carrier rail, 35 X 7.5 mm, 1mm/0.039 in thick slotted
84	HPE-VV5QZ15-04N7TC	4 Station Manifold With Integrated 1/4" OD Fittings
86	HPE-VVQZ1000-10A-5	VV5QZ15 Manifold Blank Plate
88	AEL-WA-280-901	2-conductor through terminal block
90	AUT-T1-1020G-3300-13	Thin finger duct grey 1 PC, 2M with cover
92	GI3300-01-05-120	Components panel
