Overflow Bottle Filler MINI-GI | Filler System

Request a Quote

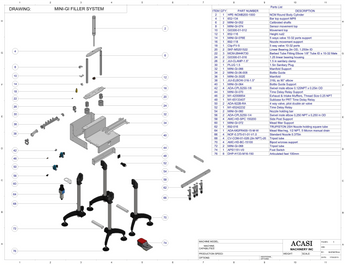

FILLER SYSTEM | PUMP AND TANK

Item	Part No.	Part Name	Price
2	NCMB200-1000	NCM Round Body Cylinder
4	652-134	Bar Top SupportMP8
6	MINI-GI-052	Calibrated Shafts
8	MINI-GI-074	Sensor Movement Top
10	GI3300-01-012	Movement Top
12	652-116	Height Nut2
14	MINI-GI-076E	5 Ways Valve 10-32 Ports Support
16	692-118	Nozzle Movement Support

Item	Part No.	Part Name	Price
18	Clip-FV-5	5 Ways Valve 10-32 Ports
20	SKF-M5201522	Linear Bearing 2in OD, 1.250in ID
22	MCM-2844K730	Barbed Tube Fitting Elbow 1/8" Tube ID x 10-32 Male
24	GI3300-01-016	1.25 Linear Bearing Housing
26	JUI-CLAMP-1.5"	1.5 in Sanitary Clamp
30	PLUG 1.5	1.5 in Sanitary Plug
32	MINI-GI-066	Manifold Support

Item	Part No.	Part Name	Price
34	MINI-GI-06-008	Bottle Guide
36	MINI-GI-302E	Manifold
38	JUI-ELBOW-316-1.5"	316L SS 90° Elbow
40	MINI-GI-064	Bottle Guide Support
42	ADA-CPLS250-1/8	Swivel Male Elbow 0.125 NPT X 0.25in OD
44	MINI-GI-070	Time Delay Relay Support
46	M1-42008854	Exhaust & Intake Mufflers, Thread Size 0.25n NPT

Item	Part No.	Part Name	Price
48	M1-65133407	Subbase for PRT Time Delay Relay
50	ADA-922B-RA	4 Way Valve, Pilot Double Air Valve
52	M1-65242232	Time Delay Relay
54	MINI-GI-060	Nozzle Holding Bar
56	ADA-CPLS250-1/4	Swivel Male Elbow 0,250 NPT X 0,250inOD
58	AMC-HD-SPC 150200	Side Post Support
60	MINI-GI-072	Mead Filter Support

Item	Part No.	Part Name	Price
62	692-016	TRUPISTON 2SH Nozzle Holding SquareTube
64	ADA-MGFR400-15-M-W	Mead Filtee/reg, 1/2 NPT, 5 Micron Manual Drain
66	NOF-0.375-01-01-V1.0	Standard Nozzle 0.375in
68	CV-COM-01-028 (2in NPT)-20	Tripod Tube
70	AMC-HD-BC-15100	Bipod w/cross Support
72	MINI-GI-068	Tripod Tube
74	APS1151-V0	Foot Switch
76	DHP-H133-M16-150	Articulated Feet 100mm
