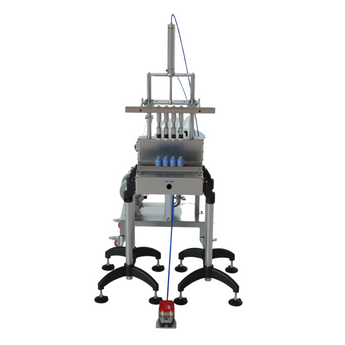

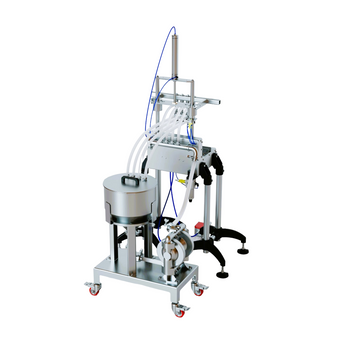

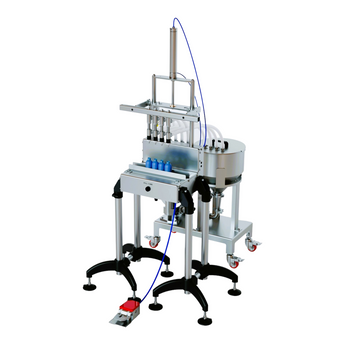

Pressure Overflow Bottle Filler - Model MINI-GI Videos


 Construction features:

  • Stainless steel cover for overflow tank.
  • All contact parts are stainless steel, sanitary, Teflon, viton and hoses per your requirements.
  • Special seals or hoses by order.
  • Calibrated guide for fast height changeovers.

Main components features:

  • Hardened Stainless steel calibrated shafts with linear bearings for nozzle rack movement smoothness and durability.
  • Air Operated Double Diaphragm Pump
  • Foot Switch

Standard features:

  • Container height adjustment from 1 to 16 inches high.
  • Nozzle stroke adjustments from 0 to 10 inches.
  • Will work with plastic or glass containers.
  • No change parts needed for various types of containers.
  • Air filter-regulator and safety lockout valve included.

 Pneumatic requirements:

5 CFM @ 80 p.s.i.
