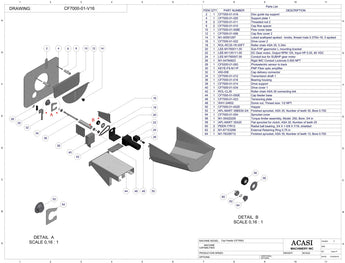

Vertical wheel cap feeder, model CF 7000, Assy CF7000-01-V16, by Acasi Machinery Inc.

Acasi

Cap Feeder model CF 7000 Parts CF7000-01-V16

Name: Cap Feeder model CF 7000 Parts CF7000-01-V16
Brand: Acasi
Availability: InStock

$ 0.00 USD

Product variants

CF7000-01-V16 | CF7000-03-V16

CF7000-01-V20 | CF7000-03-V22

__________________________________________________

Option:

Cap chute (13000)

Item	Part No.	Part Name
2	CF7000-01-018	Disc guide top support
4	CF7000-01-020	Support plate 1
6	CF7000-01-011	Threaded rod 2
8	CF7000-01-010	Cap flow spacer
10	CF7000-01-008E	Flow cover base
12	CF7000-01-006	Cap flow cover 2
14	M1-00591297	Lobed scalloped spoked - knobs, thread male 0.375in-16,5 spoked
16	CF7000-01-022	Drive cover 2

Item	Part No.	Part Name
18	ROL-RC35-1R-50FT	Roller chain ASA 35, 5.34in
20	LEE-M1760011.00	Sub-FHP gearmotor L mounting bracket
22	LEE-M1135111.00	DC Gear motor, Output RPM 125, Imput HP 0.25, 90 VDC
24	LEE-M1760007.00	Conduit box for SUBHP gear motor
26	M1-04784823	Rigid IMC Conduit Locknuts 0.500 NPT
28	CF5200-01-093	Photoelectric sensor to track
30	KEYE-FS-N11P	PNP Fiber optic amplifier
32	450-006	Cap delivery connector

Item	Part No.	Part Name
34	CF7000-01-012	Transmision shaft 1
36	CF7000-01-016	Bearing housing
38	CF7000-01-014	Drive support
40	CF7000-01-034	Drive cover 1
42	ROL-CL35	Roller chain ASA 35 connecting link
44	CF7000-01-050E	Cap feeder base
46	CF7000-01-023	Tensioning plate
48	WAY-24602	Dome nut 1/2 NPT thread size

Item	Part No.	Part Name
50	CF7000-01-002E	Hopper
52	APL-MART-35BS30-3/4	Finished sprocket, ASA 35, Number of teeth 30, Bore 0.750
54	CF7000-01-054	Sprocket cover
56	M1-35422229	Torque limiter assembly, Model: 250, Bore: 0.75 in
58	APL-MART35A25	Flat sprocket for clutch, ASA 35, Number of teeth 25
60	PEER-77R12	Radial ball bearing, 3/4 x 1-5/8 x 7/16, shielded
62	M1-67153288	External Retaining Ring 0,75 in
64	M1-78338712	Finished sprocket, ASA 35, Number of teeth 13, Bore 0.750
