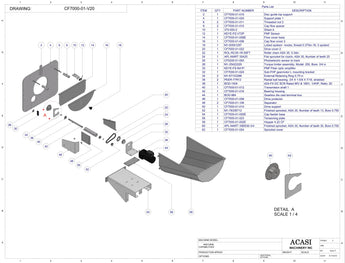

Cap Feeder model CF 7000 Parts CF7000-01-V20

Request a Quote

CF7000-01-V16 | CF7000-03-V16

CF7000-01-V20 | CF7000-03-V22

__________________________________________________

Option:

Cap chute (13000)

Item	Part No.	Part Name	Price
2	CF7000-01-018	Disc guide top support
4	CF7000-01-020	Support plate 1
6	CF7000-01-011	Threaded rod 2
8	CF7000-01-010	Cap flow spacer
10	370-550-2	Sheet A
12	KEYE-PZ-V72P	PNP Sensor
14	CF7000-01-008E	Flow cover base
16	CF7000-01-006	Cap flow cover 2

Item	Part No.	Part Name	Price
18	M1-00591297	Lobed scalloped spoked - knobs, thread male 0.375in-16,5 spoked
20	CF7000-01-022	Drive cover 2
22	ROL-RC35-1R-50FT	Roller chain ASA 35, 5.34in
24	APL-MART35A25	Flat sprocket for clutch, ASA 35, Number of teeth 25
26	CF5200-01-093	Photoelectric sensor to track
28	M1-35422229	Torque limiter assembly, Model: 250, Bore: 0.75 in
30	KEYE-FS-N41P	PNP Fiber optic amplifier
32	CF7000-01-024	Sub-FHP gearmotor L mounting bracket

Item	Part No.	Part Name	Price
34	M1-67153288	External Retaining Ring 0,75 in
36	PEER-77R12	Radial ball bearing, 3/4 x 1-5/8 x 7/16, shielded
38	BOD-1504	42A-FX DC SCR Rated 90V & 180V, 1/4HP, Ratio: 20
40	CF7000-01-012	Transmision shaft 1
42	CF7000-01-016	Bearing housing
44	BOD-984	Gearbox die cast terminal box
46	CF7000-01-058	Drive protector
48	CF7000-01-106	Separator

Item	Part No.	Part Name	Price
50	CF7000-01-014	Drive support
52	M1-78338712	Finished sprocket, ASA 35, Number of teeth 13, Bore 0.750
54	CF7000-01-050E	Cap feeder base
56	CF7000-01-023	Tensioning plate
58	CF7000-01-002E	Hopper
60	APL-MART-35BS30-3/4	Finished sprocket, ASA 35, Number of teeth 30, Bore 0.750
62	CF7000-01-054	Sprocket cover
