Cap Feeder Model CF7000 Parts CF7000-03-V22

Name: Cap Feeder Model CF7000 Parts CF7000-03-V22
Brand: Acasi
Availability: InStock

$ 0.00 USD

Product variants

CF7000-01-V16 | CF7000-03-V16

CF7000-01-V20 | CF7000-03-V22

__________________________________________________

Option:

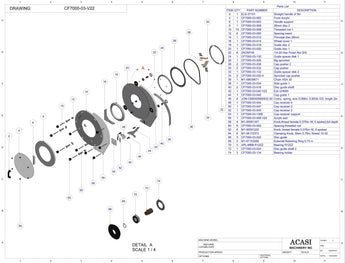

Cap chute (13000)

Item	Part No.	Part Name
2	ELS-37101	Straight handle of 5 in
4	CF7000-03-002	Front Acrylic
6	CF7000-03-003	Handle support
8	CF7000-03-006	28mm disc 2
10	CF7000-03-008	Threaded rod 1
12	CF7000-03-050	Spacing insert
14	CF7000-03-012	Principal disc 28mm
16	CF7000-03-014	Wheel cover 1

Item	Part No.	Part Name
18	CF7000-03-018	Guide disc 2
20	CF7000-03-020	Guide disc 1
22	25CNFHS	1/4-20 Hex finish nut s/s
24	CF7000-03-130	Guide spacer disk 1
26	CF7000-03-026	Big sprocket
28	CF7000-03-036	Cap pusher 2
30	CF7000-03-032	Cap pusher
32	CF7000-03-132	Guide spacer disk 2

Item	Part No.	Part Name
34	CF7000-03-030-4	Sprocket cap pusher
36	M1-58636671	Chain ASA 35
38	CF7000-03-034	Side guide 1
40	CF7000-03-016	Disc guide shaft
42	CF7000-03-040 V22	Exit UHMW
44	CF7000-03-042	Cap guide 1
46	JON-C850X068SSX2.00	Compression spring, wire: 0.068 in, OD:0.850in, length 2 in
48	CF7000-03-044	Cap receiver 4

Item	Part No.	Part Name
50	CF7000-03-047	Cap receiver 2
52	CF7000-03-045	Cap receiver 2
54	CF7000-03-136E	Cap receiver support
56	CF7000-03-048 V22	Acrylic exit
58	M1-00591347	Lobed spoked knobs, female thread 3/8-16,5 spoked
60	CF7000-03-052	Spacing threaded rod
62	M1-00591222	Lobed spoked knobs, threaded female 3/8-16,5 spoked
64	M1-06172373	Clamping knob, stem 0.75in, thread 10-32

Item	Part No.	Part Name
66	CF7000-03-022	Disc guide
68	M1-67153288	External retaning ring 0.75 in
70	APL-MBB-R12ZZ	Bearing R12ZZ
72	CF7000-03-024	Disc guide shaft 2
74	CF7000-03-134	Bearing holder
