CHASSIS | CONTROL PANEL | SERVOMOTOR ORIENTATOR
BELTS SYSTEM | ENTRY PROTECTION | EXIT PROTECTION

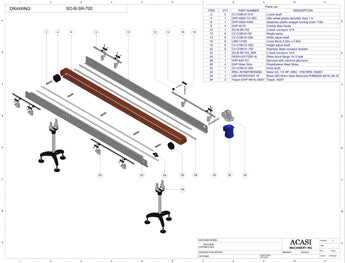

| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 2 | CV-COM-01-010 |
U joint shaft |
 |
| 4 | DHP-H820-T21-NO | Idler wheel plastic sprocket, bore 1 in | |
| 6 | DHP-H820-K450 | Assembly plastic straight running chain 118in | |
| 8 | DHP-H219 | Conical Side Guide | |
| 10 | SO-B-SR-702 | U back conveyor 10 ft | |
| 12 | CV-COM-01-08 | Single clamp | |
| 14 | CV-COM-01-004 | Width adjust shaft |
|
| 16 | LINA-13182 | Cross Block 0.50in x 0.50in | |
| 18 | CV-COM-01-002 | Height adjust shaft |
|
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 20 | CV-COM-01-150 | Stainless Steel conveyor bracket | |
| 22 | SO-B-SR-702_MIR | U back conveyor 10 ft |
|
| 24 | PEER-UCFT205-16 | Pillow block flange 1in 2 hole | |
| 26 | DHP-H820-T21 | Sprocket with minimun pilot bore | |
| 28 | DHP-Wear Strip | Polyethylene Wear Strips | |
| 30 | CV-COM-01-050 | Drive shaft | |
| 32 | RRU-.5018EP3ERS56C | Motor AC, 1/2 HP, 208V, 1750 RPM, SS56C | |
| 34 | LEE-WF20016301.16 | Bravo 500 Worm Gear Reducers FHMQ520-26-HL-56-16 | |
| 36 | Tripod (DHP-H615) ASSY | Tripod ASSY | |
