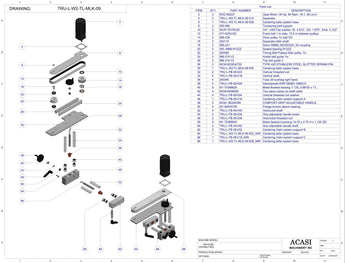

Bottle Secondary Orientator Model SO-B-SR | Belts System

Request a Quote

CHASSIS | CONTROL PANEL | SERVOMOTOR ORIENTATOR

BELTS SYSTEM | ENTRY PROTECTION | EXIT PROTECTION

Item	Part No.	Part Name	Price
2	BOD-N2227	Gear motor 1/6 HP, 94 RPM, 18:1, 39 lb-in
4	TRU-L-W2-TL-MLK-09-010	Separator
6	TRU-L-W2-TL-MLK-09-006	Centering belts system base
8	550-580	Tensioning belt support
10	WUR-75VWUSI	3/4" USS Flat washer, ID: 0.812", OD: 1.875", thick: 0.102"
12	STI-420H100	Foam belt 1 in wide, 15.5 in between pulleys
14	996-236	Drive pulley 1in belt SO
16	200110	Separator-Idler shaft

Item	Part No.	Part Name	Price
18	995-221	Servomotor coupling
20	APL-MBB-R12ZZ	Sealed bearing R12ZZ
22	200080	Timing belt pulleys-idler pulley 1in
24	996-218 V2	Acetal belt guide 1in
26	996-216 V2	Top belt guide 2
28	MCM-92383A730	Type 420 stainless steel slotted spring pin
30	TRU-L-W2-TL-MLK-09-002	Centering belts system base
32	TRU-L-FB-09-022	Vertical threaded rod

Item	Part No.	Part Name	Price
34	TRU-L-FB-09-018	Vertical shaft
36	200340	Tube 28 bushing right hand
38	M1-03181757	Handwheels KIPP-06263-1080CO
40	M1-75368829	Metal backed bearing 1" OD, 0.88" ID x 1" L
42	MCM-6436K62	Two piece clamp on shaft collar
44	TRU-L-FB-09-024	Vertical threaded rod washer
46	TRU-L-FB-09-016	Centering chain system support A
48	MCM-5634K590	Comfort-grip adjustable handle

Item	Part No.	Part Name	Price
50	M1-06454706	Flange bronze sleeve bearing
52	TRU-L-FB-09-040	Horizontal shaft
54	TRU-L-FB-09-034	Grip adjustable handle shaft
56	TRU-L-FB-09-038	Horizontal threaded rod
58	M1-75368845	Metal backed bushing 1in ID x 0.75 H x 1.125 OD
60	TRU-L-FB-09-042	Grip adjustable handle shaft
62	TRU-L-FB-09-032	Centering chain system support B
64	TRU-L-W2-TL-MLK-09-002_MIR	Centering belts system base
66	TRU-L-FB-09-016_MIR	Centering chain system support C
68	TRU-L-W2-TL-MLK-09-006_MIR	Centering belts system base
