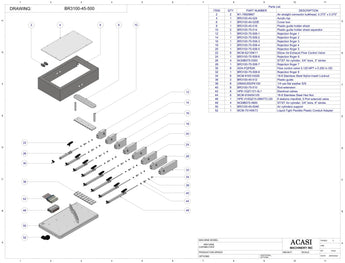

Bottle Reject Model BR3100-45 - Parts | Rejection System

Item	Part No.	Part Name
2	M1-79929667	Air straight connector bulkhead, 0.375" x 0.375"
4	BR3100-45-524	Acrylic top
6	BR3100-45-520E	Cover box
8	BR3100-45-516	Plastic guide holder sheet
10	BR3100-75-514	Plastic guide holder sheet separator
12	BR3100-75-506-1	Rejection finger 1
14	BR3100-75-506-2	Rejection finger 2
16	BR3100-75-506-3	Rejection finger 3
18	BR3100-75-506-4	Rejection finger 4
20	BR3100-75-506-5	Rejection finger 5

Item	Part No.	Part Name
22	MCM-62135K11	Elbow Air-Exhaust Flow Control Valve
24	BR3100-75-506-6	Rejection finger 6
26	NCMB075-0300	ST/ST Air cylinder, 3/4" bore, 3" stroke
28	BR3100-75-506-7	Rejection finger 7
30	ADA-FQPS2K	Flow control valve 0.125 NPT x 0.250 in OD
32	BR3100-75-506-8	Rejection finger 8
34	MCM-91831A029	18-8 Stainless Steel Nylon-Insert Locknut
36	BR3100-45-512	Plastic guide
38	25NWUSS/PK100	1/4 uss flat washer S/S
40	BR3100-75-510	Rod extension

Item	Part No.	Part Name
42	HPE-VQZ1151-5L1	Electrical valves
44	MCM-91845A105	18-8 Stainless Steel Hex Nut
46	HPE-VV5QZ15-08N7TC-D0	8 stations manifold, 5 Port solenoid valve
48	NCMB075-0600	ST/ST Air cylinder, 3/4" bore, 6" stroke
50	BR3100-45-504E	Air cylinders support
52	MCM-75145K73	Liquid-Tight Flexible Plastic Conduit Adapter
