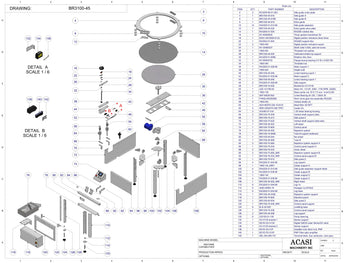

Bottle Reject Model BR3100-45 - Parts

Request a Quote

Complete Assy | Rejection System | Control Panel | Electrical Panel

Item	Part No.	Part Name	Price
2	RU3200-MI-01-224	Side guide union plate
4	BR3100-45-016	Side guide A
6	BR3100-45-016B	Side guide B
8	BR3100-45-018	Entry guide
10	RA4200-01-012-MI	Side guide separator
12	BR3100-45-020	Entry guide union plate
14	RA3200-01-020	RA3200 rotative disc
16	M1-64829500	Three spoked handwheel 5in
18	DD51-AN-0050-D-C2	Digital position indicators direct drive
20	RA3042-01-004	RA3200 support disc

Item	Part No.	Part Name	Price
22	1900-046	Digital position indicators suport
24	M1-35465327	Shaft collar 0.500, solid set screw
26	1900-044	Threaded rod washer
28	BR3100-45-040	Calibrated shafts top support
30	RA3200-01-006E	Rotative disc drive
32	M1-06454722	Flange bronze bearing 0.5 ID x 0.625 OD
34	1900-040	Threaded rod
36	RA3200-01-028-MI	Motor support 1
38	1900-042	Height nut 2
40	BR3100-45-046	Linear bearing support 1

Item	Part No.	Part Name	Price
42	RA3200-01-030-MI	Motor support 2
44	BR3100-45-048	Linear bearing support 1
46	RA3200-01-026-MI	Side support
48	BR3100-75-052	Bracket for CV-H130
50	LEE-101769.00	Motor AC, 1/3 HP, 208V, 1750 RPM, SS56C
52	1900-138	Steel carrier rail, 35 X 7.5 mm, 1mm/0.039
54	SKF-M5201522	Linear Bearing 2in OD, 1.250in ID
56	FHMQ-W5200088	Worm drive gear box assembly RA3200
58	1900-030	Vertical shafts (3)
60	ADA-MGFR-300-10-M-W	Mead filter 3/8 NPT

Item	Part No.	Part Name	Price
62	SER-C0020741ZM-TPR1	Caster 2in
64	GI3300-01-016	1.25 linear bearing housing
66	BR3100-75-038	Vertical shaft support plate
68	BR3100-75-012	Side panel 2
70	BR3100-75-022	Vertical shaft support plate base
72	BR3100-45-002	Left sheet
74	BR3100-75-600	Control panel
76	BR3100-45-500	Rejection system
78	BR3100-75-050E	Tube B support weldment
80	BR3100-45-044	Nut sheet

Item	Part No.	Part Name	Price
82	BR3100-45-066	Tube B
84	BR3100-75-060	Rejection system support A
86	BR3100-75-034	Control panel support A
88	BR3100-75-032	Union sheet
90	BR3100-75-060_MIR	Rejection system support B
92	BR3100-75-034_MIR	Control panel support B
94	BR3100-75-010	Side panel 2
96	RA3200-01-042-MI	Leg support
98	1900-144_MIR1	Caster support A
100	RA4200-01-010-MI	Side guide separator support sheet

Item	Part No.	Part Name	Price
102	RA3200-01-036-MI	Caster support B
104	1900-144	Caster support C
106	RA3200-01-038-MI	Caster support 2
108	BR3100-45-002_MIR	Right sheet
110	RA3200-01-040-MI	Leg 1a
112	AME-HNMX-16	Hexagon nut M16x2
114	RA3200-01-044-MI	Leg base
116	BR3100-45-030E	Rejection system support
118	BR3100-75-800	Electrical panel
120	BR3100-45-004	Side panel 2

Item	Part No.	Part Name	Price
122	BR3100-75-036_MIR	Control panel support
124	ELS-301251	Levelling base
126	BR3100-75-036	Control panel support
128	BR3100-45-058	Leg support
130	GI3100-01-138	Pump base leg
132	GV-H130 bracket 1	Sensor support
134	KEYE-GV-H130	Digital CMOS Laser SensorGV serie
136	GV-H130 bracket 2	Sensor support
138	KEYE-GV-21P	Amplifier Unit, Main Unit, PNP
140	KEYE-FS-V31P	PNP Fiber optic amplifier
142	AEL-WA-264-731	Terminal block, four conductor, color grey
