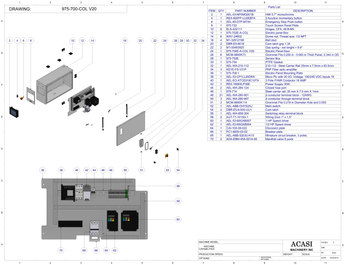

Automatic Inline Bottle Cleaner Model BR15 | Electric Panel Touch (975-700-COL V20)



STRUCTURE- TRAY AND COVERS ELECTRIC PANEL TOUCH

TANK RINSER SYSTEM | CLAMPING AND TURNING MECHANISM

 975-700 | 975-700-COL V20

Item Part No. Part Name Price
2 AEL-53-NP5MQ001B HMI 5.7" Monochrome
4 REX-800FP-LU2EBFA 2-Function Momentary Button
6 AEL-60-D7P-MT44 Emergency Stop Push Button
8 975-722 Touch Screen Panel Button
10 ELS-422111 Hinges, CFA. 49 B-M5
12 975-702E-COL Electric Panel Box
14 WAY-24602 Dome Nut, Thread Size: 1/2 NPT
18 M1-32912198 Ball Stud
20 DBR-E5-8018 Cam Latch Grip 1.34




Item Part No. Part Name Price
22 M1-00483925 Gas Spring - ext. Length= 9.6"
24 975-704E-A-COL V20 Electric Panel Door
26 MCM-9600K73 Grommet Fits 0.250 in- 0.063in Thick Panel, 0.344 OD
28 975-752E Sensor Box
30 975-754 PTFE Gasket
32 AEL-WA-210-112 210-112- Steel Carrier Rail 35mmx 7.5mm x 63.5mm
34 KEYE-FS-V31P PNP Fiber Optic Amplifier
36 975-706 Electric Panel Mounting Plate
38 AEL-53-CP1LL20DRA Micro Plc With 20 I/O, Voltage: 100/240 VDC. Inputs 18
40 AEL-EO-XTCE018C10TA 3 Pole FVN30ER Contactor 18 AMP
42 REX-1606XLP3E Power Supply 30W



Item Part No. Part Name Price
44 AEL-WA-284-124 Closed Fuse Part
46 AEL-WA-210-112-01 Steel Carrier Rail, 35mm X 7.5mm X 1mm
48 AEL-WA-280-901 2- Conductor Terminal Block- 12 AWG
50 AEL-WA-280-907 2- Conductor Through Terminal Block
52 AEL-ABB-OHYS2AJ Main Switch
54 DBR-E5-6-005-UU1 Cam Latch
56 AEL-WA-859-304 Switching Relay Terminal Block
58 AUT-T1-1015G-1 Wiring duct 1" x 1.5"
60 AEL-53-MX2AB007 1 HP Speed Driver
62 AEL-53-MX2AB004 1/2 HP Speed Driver
64 CAI-10X-09-022 Disconnect Plate
66 PC1-8000-03-02 Breaker Plate
68 AEL-ABB-S203U-K15 Miniature Circuit Breaker, 3 Poles
70 ADA-EBM-45A-001A-06 Manifold Valve 6 Ports
