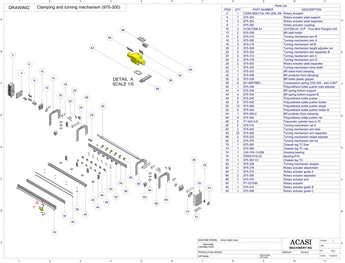

Automatic Inline Bottle Cleaner Model BR15 | Clamping And Turning Mechanism (975-300)



STRUCTURE- TRAY AND COVERS ELECTRIC PANEL TOUCH

TANK RINSER SYSTEM | CLAMPING AND TURNING MECHANISM

 975-300 | 975-300 V3

Item Part No. Part Name Price
2 CDRA1BSU100-180-J59L-XN Rotary Actuator
4 975-354 Rotary actuator plate support
6 975-352 Rotary actuator plate separator
8 975-360 Rotary actuator coupling
10 HCSLF208-24 UCF208-24, UCF - Four-Bolt Flanged Unit
12 975-328 BR seal holder
14 975-310 Turning mechanism arm B
16 975-320 Turning mechanism arm A
18 975-316 Turning mechanism rail B
20 975-326 Turning mechanism height adjuster nut
22 975-324 Turning mechanism arm separator B
Item Part No. Part Name Price
24 975-312 Turning mechanism arm C
26 975-318 Turning mechanism arm D
28 975-353 Rotary actuator plate separator
30 975-330 Turning mechanism drive shaft
32 975-302 BR sheet front clamping
34 975-306 BR protector front clamping
36 975-338 BR bottle plastic gripper
38 M1-06979801 Compression spring OD0.500 - wire 0.067"
40 975-348 Polyurethane bottle pusher tube adjuster
42 975-336 BR spring bottom support
44 975-334 BR spring bottom support B
Item Part No. Part Name Price
46 975-340 Polyurethane bottle pusher
48 975-342 Polyurethane bottle pusher holder
50 975-368 Polyurethane bottle pusher stoper
52 975-344 Polyurethane bottle pusher holder B
54 975-306-2 BR protector front clamping
56 975-346 Polyurethane bottle pusher rail
58 ADA-FT-040.5-KS Pneumatic cylinder bore 0.75
60 975-314 Turning mechanism rail A
62 975-304 Turning mechanism arm fixer
64 975-308 Turning mechanism arm separator
66 975-322 Turning mechanism height adjuster
Item Part No. Part Name Price
68 975-370 Turning mechanism rail nut
70 975-362 Chassis leg TC fixer
72 975-366 Chassis leg TC cap
74 CAI-10X-13-056 Housing bearing
76 PEER-R16 ZZ Bearing R16
78 975-364 V2 Chassis leg TC
80 975-358 Turning mechanism stopper
82 975-378 Rotary actuator attachment
84 975-372 Rotary actuator guide A
86 975-380 Rotary actuator separator
88 975-376 Rotary actuator arm
90 PT-037090 Rotary actuator
92 975-374 Rotary actuator guide B
94 975-396 Rotary actuator guide C
