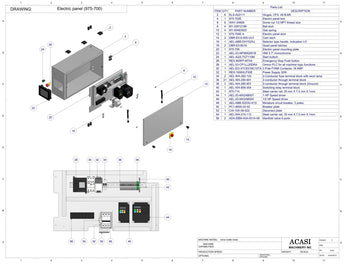

Automatic Inline Bottle Cleaner Model BR15 | Electric Panel Touch



STRUCTURE- TRAY AND COVERS | ELECTRIC PANEL TOUCH

TANK RINSER SYSTEM | CLAMPING AND TURNING MECHANISM



Item Part No. Part Name Price
2 ELS-422111 Hinges, CFA. 49 B-M5
4 975-702E Electric panel box
6 WAY-24608

Dome nut 1/2 NPT thread size

8 M1-32912198 Ball stud
10 M1-00483925 Gas Spring
12 975-704E-A Electric panel door
14 DBR-E5-6-005-UU1 Cam latch
16 AEL-ABB-OHYS2AJ Selector type handle. Indication I-O
18 DBR-E5-8018 Quad panel latches
20 975-706 Electric panel mounting plate




Item Part No. Part Name Price
22 AEL-53-NP5MQ001B HMI 5.7" monochrome
24 AEL-A22LTGT110M Start buttom
26 REX-800FP-MT44

Emergency Stop Push button

28 AEL-53-CP1LL20DRA Omron PLC for all machine logic functions
30 AEL-EO-XTCE018C10TA 3 Pole FVNR Contactor 18 AMP
32 REX-1606XLP30E Power Supply 30W
34 AEL-WA-282-124 2-Conductor fuse terminal block with neon lamp
36 AEL-WA-280-901 2-conductor through terminal block
38 AEL-WA-280-907 2-conductor through terminal block (Ground)
40 AEL-WA-859-304 Switching relay terminal block
42 975-714 Steel carrier rail, 35 mm X 7.5 mm X 1mm



Item Part No. Part Name Price
44 AEL-53-MX2AB007 1 HP Speed driver
46 AEL-53-MX2AB004 1/2 HP Speed driver
48 AEL-ABB-S203U-K15 Miniature circuit breaker, 3 poles.
50 PC1-8000-03-02 Breaker plate
52 CAI-10X-09-022 Disconect plate
54 AEL-WA-210-112 Steel carrier rail, 35 mm X 7.5 mm X 1mm
56 ADA-EBM-45A-001A-06 Manifold valve 6 ports
