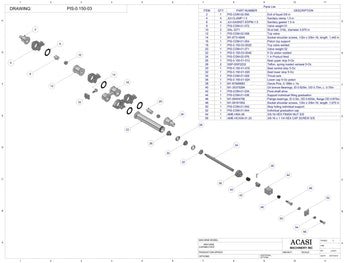

SANITARY PISTON (Current version)
Sizes availables:
5oz | 10oz | 20oz | 34oz
| Item |
Part No. |
Part name |
Price |
| 2 |
PIS-COM-02-050 |
Liquid exit - 0.625 in hose |
 |
| 4 |
JUI-CLAMP-1.5 |
Sanitary clamp 1.5 in |
|
| 6 |
JUI-GASKET-EPDM-1.5 |
Gasket, Size: 1.5in, Material: EPDM |
|
| 8 |
PIS-COM-01-072 |
Valve weight 01 |
|
| 10 |
SAL-3271 |
St-st ball, 316L, diameter 0.875 in |
|
| 12 |
PIS-COM-02-058 |
Top ball housing |
|
| 14 |
M1-67314849 |
Socket shoulder screws, 1/2in x 3/8in-16 |
|
| 16 |
PIS-COM-01-004 |
Piston top support |
|
| 18 |
PIS-0.150-03-002E |
Top cap 5-Oz piston |
|
| 20 |
PIS-COM-01-071 |
Valve weight 02 |
|
| 22 |
PIS-0.150-03-004E |
5 Oz piston welded |
|
| 24 |
PIS-COM-02-076 |
Liquid entry - 1.00in hose |
|
| 26 |
PIS-0.150-01-012 |
Seal upper stop 5-Oz |
|
| 28 |
SSP-SSP2232 |
Teflon seal for 5-Oz piston |
|
| 30 |
PIS-0.150-01-016 |
Seal central stop 5-Oz |
|
| 32 |
PIS-0.150-01-020 |
Seal lower stop 5-Oz |
|
| 34 |
PIS-COM-01-028 |
Thrust axis |
|
| 36 |
PIS-0.150-01-024 |
Lower cap 5-Oz piston |
|
| 38 |
M1-67926683 |
Clevis Pins, 0.188in x 1in |
|
| 40 |
M1-35375294 |
Oil bronze Bearings, ID 0.625in, OD 0.75in, L: 0.75in |
|
| 42 |
PIS-COM-01-034 |
Pivot shaft drive |
|
| 44 |
PIS-COM-01-036 |
Support individual filling graduation |
|
| 46 |
M1-06454706 |
oil impregnated flange bearings, ID 0.5in, OD 0.625in, flange OD 0.875in |
|
| 48 |
M1-06181952 |
Socket shoulder screws, 1/2in x 3/8in-16 |
|
| 50 |
PIS-COM-01-042 |
Stop fulling individual support |
|
| 52 |
PIS-COM-01-044 |
Individual graduation cap |
|
| 54 |
AME-HNX-06 |
Hexagon nut 0.375-16 |
|
| 56 |
AME-HCX06-01.25 |
Hexagon cap screw 0.375-16x1.250 |
|
