34 Oz Sanitary Piston (PIS-1.020-05)
Price:
$ 3,000.00
$ 3,000.00 USD
/
SANITARY PISTON (Current version)
Sizes availables:

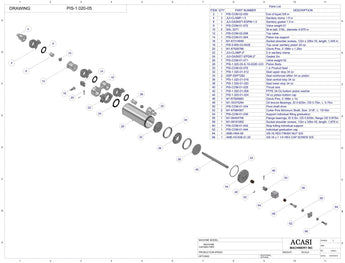

| Item | Part No. | Part name | Price |
| 2 | PIS-COM-02-050 | Liquid exit - 0.625 in hose |  |
| 4 | JUI-CLAMP-1.5 | Sanitary clamp 1.5 in | |
| 6 | JUI-GASKET-EPDM-1.5 | Gasket, Size: 1.5in, Material: EPDM | |
| 8 | PIS-COM-01-072 | Valve weight 01 | |
| 10 | SAL-3271 | St-st ball, 316L, diameter 0.875 in | |
| 12 | PIS-COM-02-058 | Top ball housing | |
| 14 | PIS-COM-01-004 | Piston top support | |
| 16 | M1-67314849 | Socket shoulder screws, 1/2in x 3/8in-16 | |
| 18 | PIS-0.600-03-002E | Top cover sanitary piston 20 oz | |
| 20 | M1-67926766 | Clevis Pins, 0.188in x 1.25in | |
| 22 | JUI-CLAMP-2" | 2 in sanitary clamp | |
| 24 | JUI-GASKET-EPDM-2" | Gasket 2in |
|
| 26 | PIS-COM-01-071 | Valve weight 02 | |
| 28 | PIS-1.020-05-S-19-002E-V23 | Piston Body | |
| 30 | PIS-COM-02-076 | Liquid entry - 1.00in hose | |
| 32 | PIS-1.020-01-012 | Seal upper stop 34-Oz | |
| 34 | SSP-SSP7282 | Seal reinforced teflon 34 oz piston |
|
| 36 | PIS-1.020-01-016 | Seal central stop 34-Oz |
|
| 38 | PIS-1.020-01-020 | Seal lower stop 34-Oz | |
| 40 | PIS-COM-01-028 | Thrust axis | |
| 42 | PIS-1.020-01-008 | PTFE 34-Oz bottom piston washer | |
| 44 | PIS-1.020-01-024 | 34 oz piston bottom cap | |
| 46 | M1-67926683 | Clevis Pins, 0.188in x 1in | |
| 48 | M1-35375294 | Oil bronze Bearings, ID 0.625in, OD 0.75in, L: 0.75in | |
| 50 | PIS-COM-01-034 | Pivot shaft drive |
|
| 52 | M1-67984567 | Cotter Pins Minimum Shaft, Size: 3/16" | |
| 54 | PIS-COM-01-036 | Support individual filling graduation |
|
| 56 | M1-06454706 | oil impregnated flange bearings, ID 0.5in, OD 0.625in, flange OD 0.875in |
|
| 58 | M1-06181952 | Socket shoulder screws, 1/2in x 3/8in-16 | |
| 60 | PIS-COM-01-042 | Stop fulling individual support | |
| 62 | PIS-COM-01-044 | Individual graduation cap | |
| 64 | AME-HNX-06 | Hexagon nut 0.375-16 | |
| 66 | AME-HCX06-01.25 | Hexagon cap screw 0.375-16x1.250 | |
