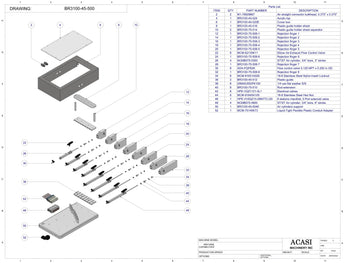

Bottle Reject Model BR3100-45 - Parts | Rejection System
$ 0.00 USD
/
Complete Assy | Rejection System | Control Panel | Electrical Panel
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 2 |
M1-79929667 |
Air straight connector bulkhead, 0.375" x 0.375" |
 |
| 4 | BR3100-45-524 | Acrylic top | |
| 6 | BR3100-45-520E | Cover box | |
| 8 | BR3100-45-516 | Plastic guide holder sheet | |
| 10 | BR3100-75-514 | Plastic guide holder sheet separator | |
| 12 | BR3100-75-506-1 | Rejection finger 1 | |
| 14 | BR3100-75-506-2 | Rejection finger 2 | |
| 16 | BR3100-75-506-3 | Rejection finger 3 | |
| 18 | BR3100-75-506-4 | Rejection finger 4 | |
| 20 | BR3100-75-506-5 | Rejection finger 5 | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 22 |
MCM-62135K11 |
Elbow Air-Exhaust Flow Control Valve |
|
| 24 | BR3100-75-506-6 | Rejection finger 6 | |
| 26 | NCMB075-0300 | ST/ST Air cylinder, 3/4" bore, 3" stroke | |
| 28 | BR3100-75-506-7 | Rejection finger 7 | |
| 30 | ADA-FQPS2K | Flow control valve 0.125 NPT x 0.250 in OD | |
| 32 | BR3100-75-506-8 | Rejection finger 8 | |
| 34 | MCM-91831A029 | 18-8 Stainless Steel Nylon-Insert Locknut | |
| 36 | BR3100-45-512 | Plastic guide | |
| 38 | 25NWUSS/PK100 | 1/4 uss flat washer S/S | |
| 40 | BR3100-75-510 | Rod extension | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 42 |
HPE-VQZ1151-5L1 |
Electrical valves |
|
| 44 | MCM-91845A105 | 18-8 Stainless Steel Hex Nut | |
| 46 | HPE-VV5QZ15-08N7TC-D0 | 8 stations manifold, 5 Port solenoid valve | |
| 48 | NCMB075-0600 | ST/ST Air cylinder, 3/4" bore, 6" stroke | |
| 50 | BR3100-45-504E | Air cylinders support | |
| 52 | MCM-75145K73 | Liquid-Tight Flexible Plastic Conduit Adapter | |
