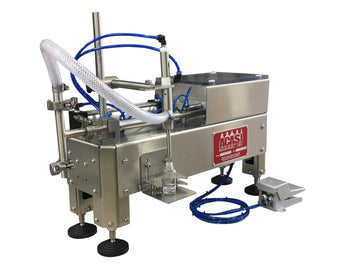

Semiautomatic inline 1 pistons filler machine pneumatic driven with independent adjustment for piston, model Minipiston 1SH, by Acasi Machinery Inc., right and front view. Semiautomatic inline 1 pistons filler machine pneumatic driven with independent adjustment for piston, model Minipiston 1SH, by Acasi Machinery Inc., right and front view.

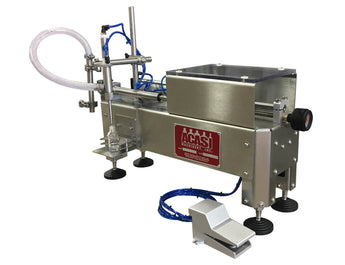

Semiautomatic inline 1 pistons filler machine pneumatic driven with independent adjustment for piston, model Minipiston 1SH, by Acasi Machinery Inc., left and front view.. Semiautomatic inline 1 pistons filler machine pneumatic driven with independent adjustment for piston, model Minipiston 1SH, by Acasi Machinery Inc., left and front view..
Semiautomatic inline 1 pistons filler machine pneumatic driven with independent adjustment for piston, model Minipiston 1SH, by Acasi Machinery Inc., right and front view Semiautomatic inline 1 pistons filler machine pneumatic driven with independent adjustment for piston, model Minipiston 1SH, by Acasi Machinery Inc., right and front view
Semiautomatic inline 1 pistons filler machine pneumatic driven with independent adjustment for piston, model Minipiston 1SH, by Acasi Machinery Inc., left and back view Semiautomatic inline 1 pistons filler machine pneumatic driven with independent adjustment for piston, model Minipiston 1SH, by Acasi Machinery Inc., left and back view
Semiautomatic inline 1 pistons filler machine pneumatic driven with independent adjustment for piston, model Minipiston 1SH, by Acasi Machinery Inc., right and front view.
Semiautomatic inline 1 pistons filler machine pneumatic driven with independent adjustment for piston, model Minipiston 1SH, by Acasi Machinery Inc., left and front view..
Semiautomatic inline 1 pistons filler machine pneumatic driven with independent adjustment for piston, model Minipiston 1SH, by Acasi Machinery Inc., right and front view
Semiautomatic inline 1 pistons filler machine pneumatic driven with independent adjustment for piston, model Minipiston 1SH, by Acasi Machinery Inc., left and back view

Engineering Drawings

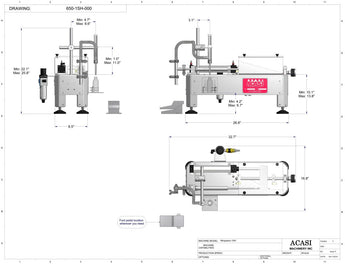

Semiautomatic inline 1 pistons filler machine pneumatic driven with independent adjustment for piston, model Minipiston 1-SH dimensions, by Acasi Machinery Inc.
Semiautomatic inline 1 pistons filler machine pneumatic driven with independent adjustment for piston, model Minipiston 1-SH dimensions, by Acasi Machinery Inc.

Videos
<iframe width="450" height="300" src="//www.youtube.com/embed/oUFV59yHwZQ? fs=1&hl=en_US&rel=0"><frameborder="0" allowfullscreen></iframe>

Acasi

Miniature Piston Filler - Model MP-1SH

$ 0.00 USD

Construction features:

  • Heavy duty 1.50 bore air cylinder with mechanical stroke adjustment.
  • Piston stroke pneumatic driven and easy to adjust.
  • Capable of handling breakable particles up to ¾ in diameter.
  • Anodized aluminum thickness 1 in bottom plate.
  • Heavy duty 304 stainless steel screwed frame construction.
  • 3 way rotary valves.
  • All contact parts are stainless steel, sanitary, teflon, buna, viton.
Standard features:
  • Nozzle fully adjustable in any direction.
  • Height nozzle can be fully adjustable.
  • Works with plastic or glass containers.

Electric and pneumatic requirements:

  • 10 CFM @ 80 psi.
