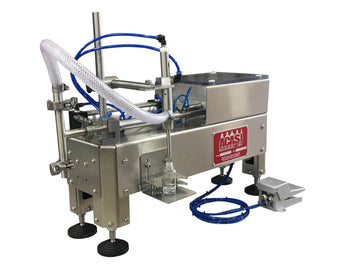

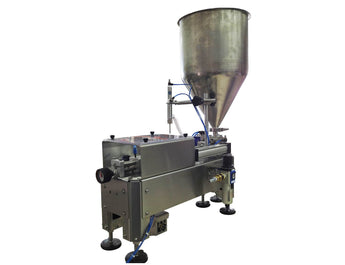

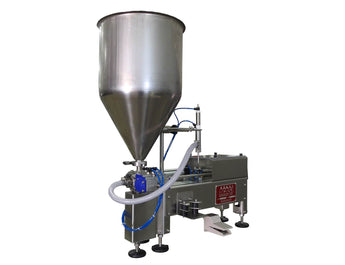

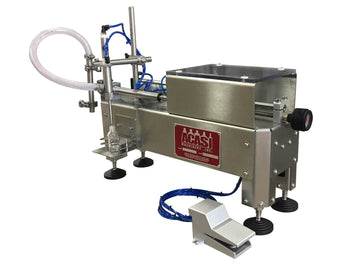

Miniature Piston Filler - Model MP-1SH



Construction features:

  • Heavy duty 1.50 bore air cylinder with mechanical stroke adjustment.
  • Piston stroke pneumatic driven and easy to adjust.
  • Capable of handling breakable particles up to ¾ in diameter.
  • Anodized aluminum thickness 1 in bottom plate.
  • Heavy duty 304 stainless steel screwed frame construction.
  • 3 way rotary valves.
  • All contact parts are stainless steel, sanitary, teflon, buna, viton.
Standard features:
  • Nozzle fully adjustable in any direction.
  • Height nozzle can be fully adjustable.
  • Works with plastic or glass containers.

Electric and pneumatic requirements:

  • 10 CFM @ 80 psi.
