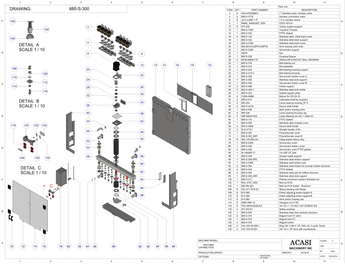

Piston Filler - Model Trupiston 8 SERVO | PISTON & VALVE SYSTEM

Request a Quote

PISTON & VALVE SYSTEM | TUBE STRUCTURE & CHASSIS

SERVO NOZZLE MOVEMENT | ELECTRIC PANEL TOUCH |

STANDARD TANK | TANK HEATED-AGITATION |

TANK WITH BLENDER TROWEL

PISTONS

ID 7/8" (0.45 to 4.5 oz) ID 1-1/8" (0.9 to 9 oz)

ID 1-3/8" (1.1 to 11 oz) ID 1-7/8" (2.1 to 21 oz)

ID 2-7/8" (5.0 to 50 oz) ID 4-1/4" (10.9 to 109 oz)

ID 5-1/4" (16.7 to 167 oz)

Item	Part No.	Part Name	Price
2	ADA-AP063BDA	1" Stainless steel, Sanitary valve
4	680-S-371E	Sanitary connection valve
6	JUI-CLAMP- 1.5"	1.5 Sanitary Clamp
8	R88M-1M2K020T-BS2	AC servomotor 2 kw, 240v, 2000 RPM
10	615-230	Valves System Support
12	680-S-102E	Trupiston Chassis
14	680-S-334	PTFE Gasket
16	680-S-120	Stainless Steel Sheet Back Cover

Item	Part No.	Part Name	Price
18	680-S-332	Stainless Steel Back Support
19	680-S-378E	Stainless Steel Back Cover
20	BK2-60-93-22PFN-28PFN	8MM Keyway both ends
22	680-S-330E	Servomotor Support
24	KMT6	Nut
26	680-S-328	Coupling Spacer
28	MCM-668K170	Angular-Contact Ball Bearing
30	680-S-316	Ball Bearing Nut

Item	Part No.	Part Name	Price
32	680-S-318	Nut Separator
34	680-S-322	Ball Bearing Housing Support
36	680-S-310-C	Ball Bearing Housing
38	680-S-338	Servomotor Bottom Cover A
40	680-S-360	Stainless Steel Side Support
42	680-S-336	Servomotor Bottom Cover B
44	682-S-386	Holder Support
46	682-S-382-1	Stainless Steel Side Holder

Item	Part No.	Part Name	Price
48	680-S-342	Gasket Support Plate
50	CQM-43686	Bellow 5" OD 2in ID
52	680-S-314	Calibrated Shaft For Trupiston
54	695-254	Linear Bearing Housing TP A
56	680-S-321E	Round Shaft Holder
58	680-S-306E	Main Piston Housing Drive
60	695-236	Linear Bearing Housing Cap
62	SKF-M5201522	Linear Bearing 2in OD, 1.250in ID

Item	Part No.	Part Name	Price
64	680-S-110	PTFE Gasket
66	680-S-350	Stainless Steel Chassis Cover
68	680-S-320E	Round Shaft Holder
70	ELS-37101	Straight Handle of 5in
72	680-S-362	Polycarbonate Cover
74	680-S-362_MIR	Polycarbonate Cover B
76	SOL-VG-634-AA	Hinge Plastic Heavy Duty
78	680-S-324E	Servomotor Cover

Item	Part No.	Part Name	Price
80	680-S-326	Servomotor Bottom Cover
82	680-S-348	Servomotor Cover PTFE Gasket
84	M1-08060717	1/4UNF ST Zerk
86	680-S-356	Grease Nipple Support
88	680-S-368-SPE	Stainless Steel Bottom Support
90	680-S-346E	Stainless Steel Bottom Part
92	680-S-354	Stainless Steel Holder For Encoder Bottom Structure

Item	Part No.	Part Name	Price
94	680-S-344	PTFE Gasket
96	680-S-340	Stainless Steel Part For Bellow Structure
98	680-S-360_MIR	Stainlees Steel Side Support
100	680-S-312	Piston Movement System Theared Rod
102	ADA-R54-2	Rockford R54-2 Ball nut
104	680-SN-924	Ball Nut R-54 Holder-Rockford
106	IGU-LFI-1618-24	Sleeve Bearing With Flange
108	615-200	Piston Adjusting Screw Support A

Item	Part No.	Part Name	Price
110	615-380	Piston Adjusting Screw Support B
112	615-080	Main Piston Housing Cap
114	AME-HNX-12	Hexagon nut 0.750-16
116	AME-HCX12-01.25	3/4-16 X 1 1/4HEX CAP SCREW S/S
118	STI-CM-S1	Door Sensor
120	680-S-364	Stainless Steel Door Sensors Structure
122	680-S-372	Magnet Hold TC Shim
124	680-S-374	Magnet Hold TC
126	680-S-376	Magnet Holder
128	CAI-10X-05-080-1	Ring 3/4" X #8 X 1/8", N42, NI, C-sunk South
130	CAI-10X-05-081	3/4" OD x 1/8" Thick With Countersunk
