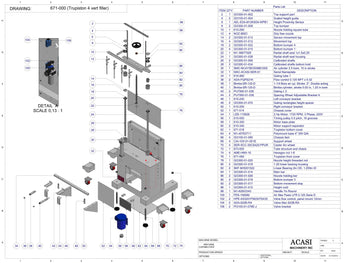

Piston Filler - Model Trupiston- 4 Vert. Tube Structure & Chassis


TUBE STRUCTURE & CHASSIS | PISTON & VALVE SYSTEM

ELECTRIC PANEL TOUCHTANK



Item Part No. Part Name Price
2 GI3300-01-002

Top support part

4 GI3300-01-004

Scaled height guide

6 AEL-E2A-M12KS04-WPB1 Height proximity sensor
8 GI3300-01-008 Top bumper
10 610-290 Nozzle holding square tube
12 NOZ-IBSO-0.625-01 0.625in drip free nozzle
14 GI3300-01-013 Sensor movement top
18 GI3300-01-022 Bottom bumper 4
22 M1-36677029 Radial shaft seal 1x1.5x0.25
24 GI3300-01-038 Radial shaft seal housing
26 GI3100-01-006 Calibrated shafts
28 GI3300-01-034 Calibrated shafts bottom hold
30 SMC-NCAY5EO006B1000 Air cylinder 2.5 bore, 10 in stroke
32 MAC-ACASI-SER-01 Serial Nameplate
34 610-260 Gating tube 1
36 ADA-FQPS21K Flow control 0.125 NPT x 5-32
38 ADA-SR-122-DNT Bimba cylinder 1-1/4" bore
40 Bimba-SR-125-D Double acting cylinder
42 PU7000-01-036 Gating L 2
44 PU7000-01-038 Gating L 1
46 610-240 Left conveyor bracket
48 GI3300-01-070 Gating rectangles height spacer
50 610-250 Right conveyor bracket
52 671-014 Chassis cover
54 LEE-115828 2 Hp Motor, 1725 RPM, 3 Phase, 220V
56 610-050 Timing pulley 0.5 pitch, 16 grooves
58 610-350 Motor base
60 610-340 Motor support separator
62 671-018 Trupiston boltom cover
64 M1-45763711 Polymount base 4'' SW QIA
66 GI3100-01-090 Chassis feet
68 CAI-10X-01-051E Support wheel
70 SER-SCC-30CS420-PPUR Caster 4in wheel
72 671-008E Tube structure and chasis
74 AME-HNX-16 Hexagon nut 1-8
76 671-090 Trupiston front cover
78 GI3300-01-020 Nozzle height threaded rod
80 GI3300-01-016 1.25 linear bearing housing
82 SKF-M/5201522 2 n linear bearing OD x 1 1/4in ID
84 GI3300-01-014 Main bar
86 GI3300-01-026 Nozzle holding bar
88 GI3300-01-015 Bottom bumper 1
90 GI3300-01-019 Bottom bumper 3
92 GI3300-01-017 Bottom movement stop
94 GI3300-01-012 Movement top
96 GI3300-01-010 Height nut2
98 M1-82503343 Handle 7in Round
100 FES-159582 Air fliter Festo LFR 0.125 Serie D
102 HPE-AS3201FN0307SX35 Inline flow control, panel mount 12mm
104 ADA-922B-RA Valve Mac 922B-RA
106 PI3100-01-076E-J Valve bracket
