Neck Bander Model TRU-NB1 - Videos

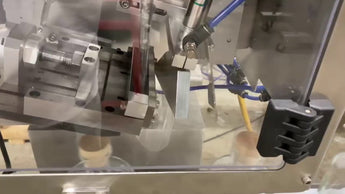

The conveyor is NOT included - PVC Heat Shrinkable application machine, unit will automatically cut and dispense onto cap – neck of your container.

Includes:

  • Tooling guide for one size container
  • Omron servo motor for accurate tubing dispensing.
  • Knife and cutting mechanism manufactured in hardened D2 tool steel
  • Stepper driven roll tension reliever
  • Photo electric sensor for dispensing triggering

Important requirements and limitations

  • Roll needs to have 5in core and 16in OD max
  • Material cannot have a center SEAM – All seams must be off 25-30% from the edge
  • Maximum material size laid flat is 4in
  • Omron servo motor for accurate tubing dispensing.
  • Knife and cutting mechanism manufactured in hardened D2 tool steel

Construction Features:

  • Heavy duty 304 stainless steel frame
  • Automatically cut the tubing to the desired length, and apply the cut band around the cap and body of your container, servo driven
  • Material guide to dispense one size mm tubing
  • Material pre-feed system

Electric and pneumatic requirements:

  • 220 Volts, Single phase, 50/60Hz, 15 Amps.
  • 10 CFM @ 80 p.s.i.
