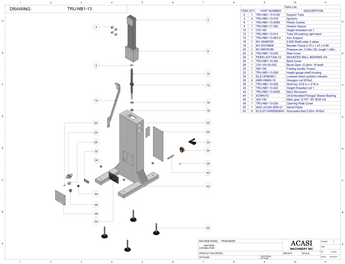

Neck Bander Model TRU-NB1| Structure



STRUCTURE |



Item Part No. Part Name Price
2 TRU-NB1-13-012E Support Tube
4 TRU-NB1-13-018 Spacer
6 TRU-NB1-13-006E Plastic Guides
8
TRU-NB1-17-020 Washer Spacer
10
370-160 Height Threaded Rod 1
12 TRU-NB1-13-014 Tube 28 Bushing Right Hand
14 TRU-NB1-13-003-2 Arm Support
16 M1-35462795 0.625 Shaft Collar 2 Piece
18 M1-03379906 Banded Thrust 0.75 x 1.47 x 0.56
20
M1-09579186 Pressure Pin ,0.25in OD , Length 1.25 in
22 TRU-NB1-13-032 Side Cover
24 PEER-UCFT204-12 Mounted Ball Bearing3/4
Item Part No. Part Name Price
26
TRU-NB1-13-020 Back Cover
28
CAI-10X-05-052 Bevel Gear 12 Pitch , 18 Teeth
30
550-100 Folding Handle Trusort
32
TRU-NB1-13-028 Height Gauge Shaft Housing
34
ELS-CE983601 Lowered Direct Position Indicator
36
AME-HNMX-16 Hexagon Nut M16X2
38
TRU-NB1-13-026 Shaft Key 3/16 in x 3/16 in
40
TRU-NB1-13-022 Height Threaded Rod 1
42
TRU-NB1-13-004E Main Structure
44 MCM-6338K472 Oil-Embedded Flanged Sleeve Bearing
46
305-190 Miter Gear 12 PIT 18T BOR 3/4
48 TRU-NB1-13-024 Opening Plate Cover
50
MAC-ACASI-SER-01 Serial Plates
52
ELS-ST-0000EN569/0 Articulated feet 5.93in x M16x2
