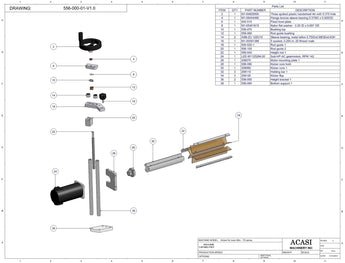

Bottle Unscrambler Trusort-48 / SO | Kicker


BOTTLE TURNING | STRUCTURE    | TRANSMISION BOX

STEPPING ASSY     REAR GUIDE   | BOWL |  KICKER

SPACING BELTS   | BELT SYSTEM  | ELECTRIC PANEL

Item Part No. Part Name Price
2

M1-64829500

Three spoked plastic handwheel 4in with 0.375 hole

4 M1-06454490

Flange bronze sleeve bearing 0.375ID x 0.500OD

6 500-510 Fixed bowl plate
8 M1-05401815 Nylon flat washer - 0.25 ID x 0.697 OD
10 556-070 Bushing top
12 556-060 Rod guide bushing
14 ASB-ZU 12ZU10 Sleeve bearing, metal teflon 0.75IDx0.88ODx0.63H
16 M1-00591388 5 spoked, 0.250 in, 20 thread male
Item Part No. Part Name Price
18

500-520-1

Rod guide 1

20 506-100

Rod guide 2

22 556-040 Height rod 1
24 LEE-M1125284.00 Sub-HP-AC gearmotors, RPM 142
26 206070 Motor mounting plate 1
28 506-090 Kicker core hold
30 206060 Kicker core 1
32 206110 Holding bar 1
34 206120 Kicker Flap
36 556-050 Height bracket 1
38 556-080 Bottom support 1
