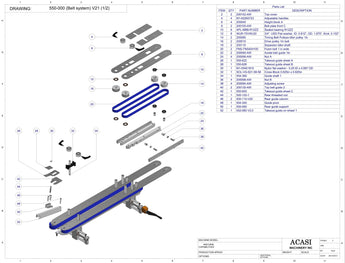

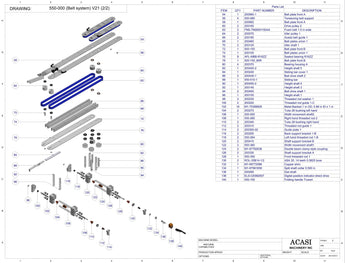

Bottle Unscrambler Trusort-48 / 60 / 72 | Belt System V21

Request a Quote

BOTTLE TURNING | STRUCTURE | TRANSMISION BOX

STEPPING ASSY | REAR GUIDE | BOWL | KI CKER

SPACING BELTS | BELT SYSTEM | BELT SYSTEM V21

ELECTRIC PANEL

Item	Part No.	Part Name	Price
2	200102-AW	Top cover
4	M1-62265723	Adjustable handles
6	200040	Height block A
8	200100-AW	Belt plate front C
10	APL-MBB-R12ZZ	Sealed bearing R12ZZ
12	WUR-75VWUSI	Flat washer bronze ID 1-1/32
14	200080	Timing Belt Pulleys-Idler pulley 1in
16	200010	Drive pulley 1in belt

Item	Part No.	Part Name	Price
18	200110	Separator-Idler shaft
20	FNS-TN540H100	Foam belt 1 in wide
22	200090-AW	Acetal belt guide 1in
24	200096-AW	Nut A
26	550-622	Takeout guide sheet A
28	550-626	Takeout guide sheet B
30	M1-05401815	Nylon flat washer - 0.25 ID x 0.697 OD
32	APL-VALU-VG6215858	Cross Block 0.625in x 0.625in

Item	Part No.	Part Name	Price
34	554-390	Guide shaft 1
36	200098-AW	Nut B
38	200094-AW	Adjusting screw
40	200130-AW	Top belt guide 2
42	550-620	Takeout guide sheet C
44	500-120-1	Rear threaded rod
46	500-110-V20	Rear guide column
48	504-340	Guide pivot

Item	Part No.	Part Name	Price
50	500-090	Rear guide support
52	552-080 V2.0	Takeout guide on wheel 1
54	200060-1	Belt plate front A
56	550-580	Tensioning belt support
58	200062	Belt plate front A
60	200160	Drive pulley 2
62	FNS-TN900H150AA	Foam belt 1.5 in wide
64	200070	Idler pulley 1

Item	Part No.	Part Name	Price
66	200180	Acetal belt guide 1
68	200460	Belt plates union 1
70	200120	Idler shaft 1
72	500-150	Belt plate front B
74	200100	Belt plates union 1
76	APL-MBB-R16ZZ	Sealed bearing R16ZZ
78	500-150_MIR	Belt plate front B
80	200370	Bearing housing A

Item	Part No.	Part Name	Price
82	200420-2	Height shaft 5
84	200240	Sliding bar cover 1
86	200430-1	Belt drive shaft 2
88	550-510-1	Sliding bar
90	200450-2	Height shaft 4
92	200140	Height shaft 3
94	200400	Belt drive shaft 1
96	200150	Height shaft 1

Item	Part No.	Part Name	Price
98	200230	Threaded rod washer 1
100	200220	Threaded rod guide 1-C
102	M1-75368829	Metal Backed 1 in OD, 0.88 in ID x 1 in
104	200270	Tube 28 bushing left hand
106	550-500	Width movement shaft2
108	550-260	Right hand threaded rod 2
110	200340	Tube 28 bushing right hand
112	200310	Threaded rod guide 1

Item	Part No.	Part Name	Price
114	200300-02	Guide plate 1
116	200250	Back support bracket 1-B
118	550-264	Left hand threaded rod 1-B
120	200410	Shaft support bracket B
122	550-360	Width movement shaft1
124	M1-87792636	Double beam clamp style coupling
126	200330	Shaft support bracket A
128	550-350	Front threaded rod 1

Item	Part No.	Part Name	Price
130	ROL-35B14-1/2	ASA 35, 14 teeth 0.5625 bore
132	M1-06772586	Copper shim
134	M1-87991659	Split shaft collar 0.5625 in
136	200290	Dial shaft
138	ELS-CE982007	Digital position indicator direct drive
140	550-100	Folding handle Trusort
