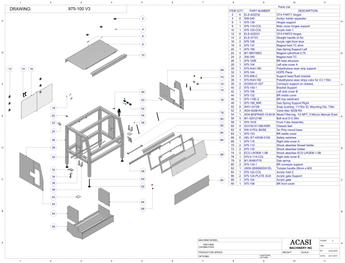

Inline Bottle Cleaner Model BR15 | Structure-Tray And Covers (975-100 V3)

Request a Quote

STRUCTURE- TRAY AND COVERS | ELECTRIC PANEL TOUCH

TANK | RINSER SYSTEM | CLAMPING AND TURNING MECHANISM | PROTECTION

975-100 | 975-100 V3

Item	Part No.	Part Name	Price
2	ELS-422232	CFA PART1 hinges
4	559-540	Acrylic holder separator
6	975-139	Hinges Support
8	975-118	Main Cover Hinges Support
10	975-120	Acrylic hold 1
12	ELS-422231	CFA Part 2 Hinges
14	ELS-37101	Straight Handle of 5in
16	975-126	Acrylic Right Front Door
18	975-137	Magnet Hold TC Shim

Item	Part No.	Part Name	Price
20	975-199	Gas Spring Support Left
22	M1-06572903	Magnet Cylindrical 0.75
24	305-350	Magnet Hold TC
26	975-102E	BR Tube Structure
28	975-104	Left Side Cover A
30	975-HoH-180	Polyethylene Wear Strip Support
32	975-144	HDPE Guide Piece
34	975-906-C	Support Head Flush Bracket
36	975-HoH-182	Polyethylene Wear Strip Color For CV 118in

Item	Part No.	Part Name	Price
38	GI3300-01-007	Conveyor Support Chassis
40	975-140-1	Bracket Support
42	975-106	Left Side Cover B
44	975-132	BR Inside Cover
46	975-110E	BR Tray Weldment
48	975-199_MIR	Gas Spring Support Right
50	WAY-24106	Snap Bushing, 11/16in ID, Mounting Dia. 7/8
52	ADA-922B-RA	Valve Mac 922B-RA
54	ADA-MGFR400-15-M-W	Mead filter/reg. 1/2 NPT, 5 Micron manual drain
56	M1-32912198	Ball Stud D-0.39in
58	975-101E	Front tube assembly
60	GI3100-01-090	Chassis Feet
62	SW-3-POL-BASE	3in Poly Mount Base

Item	Part No.	Part Name	Price
64	975-133	BR Inside Cover
66	AEL-ST-44536-0100	Safety Switches
68	975-116	Right Side Cover A
70	975-112	Shock Absorber Thread Holder
72	975-130	Shock Absorber Holder
74	ECO LROEM 1.0B	Shock Absorber ECO LROEM 1.0B
76	975-II-114-COL	Right Side Cover B
78	M1-00483776	Gas Spring
80	975-134-1	BR Conveyor Support
82	JWW-28W600D91/EL	Tubular Handle 28mm x 600
84	975-122	Acrylic Hold 2
86	975-124-PLATE AUX	Acrylic Gate Support
88	975-124	Acrylic Gate
90	975-108	BR Front Cover
