Inline Bottle Cap Tightener Model-TruCap | Electric Panel System V22

Request a Quote

CHASSIS SYSTEM | MAIN HOLDER SYSTEM

ELECTRIC PANEL SYSTEM | BOTTLE BELTS SYSTEM

BELTS SYSTEM GEAR BOX | CAPPING DISC GEAR BOX

CAPPING DISC SYSTEM (MECHANICAL CLUTCHES)

CAPPING DISC SYSTEM (PNEUMATIC CLUTCHES)

___________________________________________________________

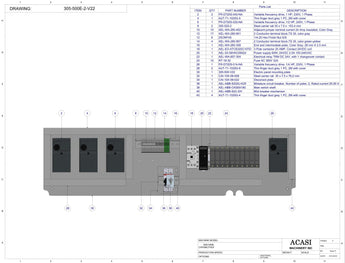

305-500E-01-V17 | 305-500E-2-V22

Item	Part No.	Part Name	Price
2	FR-D720S-042-NA	Variable frecuency drive, 1 HP, 230V, 1 Phase
4	AUT-T1-1020G-5	Thin finger duct grey 1 PC, 2M with cover
6	FR-D720S-025-NA	Variable frecuency drive, 1/2 HP, 230V, 1 Phase
8	305-520-2	Steel carrier rail 35 x 7,5 x 153.4 mm
10	AEL-WA-280-402	Adjacent jumper nominal current 24 A insulated, Width: 5 mm
12	AEL-WA-280-901	2-conductor terminal block, TS 35, color gray
14	AEL-WA-280-907	2-conductor terminal block, TS 35, color green-yellow

Item	Part No.	Part Name	Price
16	AEL-WA-280-308	End plate and intermediate plate, Color: Gray
18	AEL-EO-XTCE025C10TD	3 Pole contactor 25 AMP, Contact 24VDC coil
20	AEL-53-S8VKC06024	Power supply 60W, 24VDC 2.5A 100-240VAC
22	AEL-WA-857-304	Electrical relay TRM DC 24V, with 1 changeover contact
24	RT-18-32	Fuse AC 380V 32A
26	FR-D720S-014-NA	Variable frecuency drive, 1/4 HP, 230V, 1 Phase
28	AUT-T1-1020G-6	Thin finger duct grey 1 PC, 2M with cover
30	305-500-V22	Electric panel mounting plate

Item	Part No.	Part Name	Price
32	CAI-10X-09-008	Steel carrier rail 35 x 7,5 x 76,2 mm
34	CAI-10X-09-022	Disconect plate
36	AEL-ABB-S202U-K25	Miniature circuit breaker, Rated current 25.00 A
38	AEL-ABB-OXS6X180	Mini breaker shaft
40	AEL-ABB-S2C-DH	Main switch accesory
42	AUT-T1-1020G-4	Thin finger duct grey 1 PC, 2M with cover
