IBSO Sanitary Nozzle 0.625in

$ 390.00



IBSO SANITARY NOZZLE
Sizes availables:

0.375in | 0.500in | 0.625in | 0.750in

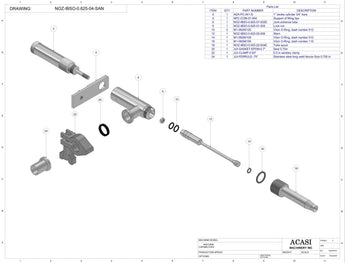

Item Part No. Part Name Price
2 ADA-PC-041-D

Bimba cylinder, Bore size: 3/4", Standard stroke lengths: 1",Mounting: Nose mount

4 NPC-COM-01-004

Support of filling tips

6 NOZ-IBSO-0.625-07-002E Joint entrance tube
8 NOZ-IBSO-0.625-01-005 Lock nut
10 M1-09265125 Viton O-Ring, dash number 012
12 NOZ-IBSO-0.625-02-006 Stem
14 M1-09265109 Viton O-Ring, dash number 010
16 M1-09266156 Viton O-Ring, dash number 115
18 NOZ-IBSO-0.625-02-004E Tube spout assemble
20 JUI-GASKET-EPDM-0.7"
Seal 0.75in
22 JUI-CLAMP-0.50" 0.5 in sanitary clamp
24 JUI-FERRULE-.75" Stainless steel long weld ferrule Size 0.750 in
