IBSO Bottom Up Sanitary Nozzle 0.750in

$ 599.00

0.375in | 0.500in | 0.625in | 0.750in

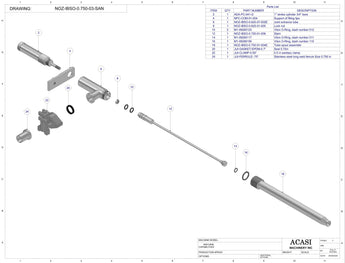

Item	Part No.	Part Name
2	ADA-PC-041-D	1" Stroke cylinder 3/4" bore
4	NPC-COM-01-004	Support of filling tips
6	NOZ-IBSO-0.625-07-002E	Joint entrance tube
8	NOZ-IBSO-0.625-01-005	Lock nut
10	M1-09265125	Viton O-Ring, dash number 012
12	NOZ-IBSO-0.750-01-006	Stem
14	M1-09265117	Viton O-Ring, dash number 011
16	M1-09266156	Viton O-Ring, dash number 115
18	NOZ-IBSO-0.750-01-004E	Tube spout assemble
20	JUI-GASKET-EPDM-0.7"	Seal 0.75in
22	JUI-CLAMP-0.50"	0.5 in sanitary clamp
24	JUI-FERRULE-.75"	Stainless steel long weld ferrule Size 0.750 in
