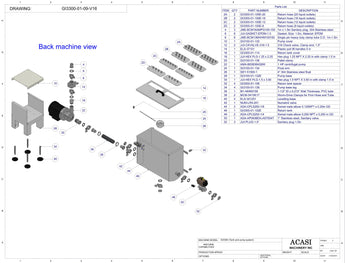

Overflow Bottle Filler GI3300 | Pump and Tank


FILLER SYSTEM & CHASSIS | ELECTRIC PANEL TOUCH

ELECTRIC PANEL STANDARD | PUMP AND TANK

PRESSURE OVERFLOW NOZZLES | BOTTOM UP NOZZLES

CENTERING GUIDES | COMBINATED SYSTEM | DRIP TRAYS

Item Part No. Part Name Price
2A GI3300-01-100E-20

Return hose (20 liquid outlets)

2B GI3300-01-100E-16 Return hose (16 liquid outlets)
2C GI3300-01-100E-12 Return hose (12 liquid outlets)
2D GI3300-01-100E-8 Return hose (8 liquid outlets)
4 JME-BCM16AMPG100-150

1in x 1.5in Sanitary plug, 304 Stainless steel

6 JUI-GASKET-EPDM-1.5 Gasket, size: 1.5", material: EPDM
8 ELS-37101 Plastic pull lift handles 5 in
10 JME-BCM13MHHM100150 Single pin heavy dury clamp tube O.D. 1in-1.5in
12 GI3300-01-130 Pump cover
14 GI3300-01-114 Return tank cover
16 JUI-CKVALVE-316-1.5 304 Check valve, Clamp end, 1.5"
Item Part No. Part Name Price
18 GI3300-01-136

Clamp arm float

20 JUI-HEX PLG-1.25 x 2.25 Hex plug 1.25 NPT x 2.25 in with clamp 1.5 in
22 GI3300-01-134 Arm float
24 GI3100-01-132E Pump base
26 AMA-B008384Q9W 1 HP centrifugal pump
28 SEY-51500-1 4" 304 Stainless steel float
30 GI3100-01-106 Return tank spacer
32 JUI-HEX PLG-1.5 x 3.00 Hex plug 1.5 NPT x 3.000 in with clamp 1.5 in
34 GI3300-01-200 Special ferrule
36 GI3100-01-138 Pump base leg
Item Part No. Part Name Price
38 NUM-LR4-201

Numatrol valve

40 ADA-CPLS250-1/8 Swivel male elbow 1/8" NPT x 1/4" OD
42 ELS-301251

Leveling base

44 GI3100-01-102E Return Tank
46 ADA-PC69SCB-44 Swivel male elbow 0.250 NPT x 0.250 in OD
48 ADA-AP063BDA,AS7004T 1" Stainless steel, sanitary valve
50 JUI-PLUG-1.5" Sanitary plug 1.5in
