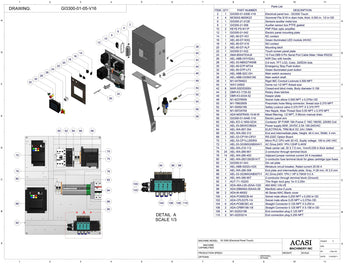

Overflow Bottle Filler GI3300 | Electric Panel Touch


FILLER SYSTEM & CHASSIS | ELECTRIC PANEL TOUCH

ELECTRIC PANEL STANDARD | PUMP AND TANK

PRESSURE OVERFLOW NOZZLES | BOTTOM UP NOZZLES

CENTERING GUIDES | COMBINATED SYSTEM | DRIP TRAYS

Item Part No. Part Name Price
2 GI3300-01-030E-V16 Touch Electrical Box
4 MCMAS-9600K23 Grommet Fits 5/16 in diam hole, thick: 0.093 in, 1/2 in OD
6 GI3300-21-012E Metal auxiliar sensor box
8 GI3300-21-008 Auxiliar sensor box PTFE gasket
10 KEYE-FS-N11P PNP Fiber optic amplifier
12 GI3300-01-042 Electric panel mounting plate
14 AEL-60-D7-X01 NC contact
16 AEL-60-D7-N3G Green illuminated LED module 24VAC
Item Part No. Part Name Price
18 AEL-60-D7-X10 NO contact
20 AEL-60-D7-ALP Mounting latch
22 GI3300-01-032 Top screen panel plate
24 AMA-B0047534J8 15 Foot DB9 9 Pin Serial Port Cable male / Male RS232
26 AEL-ABB-OHYS2AJ N3R Disc with handle
28 AEL-53-NB5QTW00B 5.6 inch, TFL LCD, Color, 320/234 dots
30 AEL-60-D7P-MT44 Emergency stop push button
32 AEL-60-D7P-LF3 Green iluminated push button
Item Part No. Part Name Price
34 AEL-ABB-S2C-DH Main switch accesory
36 AEL-ABB-OXS6X180 Main switch shaft
38 M1-04784823 Rigid IMC Conduit Locknuts 0.500 NPT
40 WAY-24602 Dome nut, Thread size: 1/2 NPT
42 MAR-SSD53SSH Closed-end blind rivets, Body diameter 0.156
44 DBR-K3-1735-52 Rotary draw latches
46 DBR-K3-0334-52 Keeper plate
48 M1-62378559 Swivel male elbow 0.500 NPT x 0.375in OD
Item Part No. Part Name Price
50 M1-79802609 Pneumatic hose fitting connector, thread size 0.375 MPT
52 M1-00092189 Safety Lockout Valve 0.375 FPT x 0.375 FPT
54 M1-09724709 Hex Nipple, Male Thread Size 0.50 NPT x 0.375 NPT
56 ADA-MGFR400-15-M-W Mead filter/reg. 1/2 NPT, 5 Micron manuel drain
58 GI3100-01-044E-V16 Electric panel arm
60 AEL-EO-3-1800-023A Contactor 3P FVNR 18A Frame C 1NO 190/50, 220/60 Coil
62 AEL-53-S8VKC06024 Power supply 60W, 24VDC 2.5A 100-240VAC
64 AEL-WA-857-304 Electrical TRM BLK DC 24V, 10MA
Item Part No.

 Part Name

Price
66 AEL-WA-282-312 End and intermediate late, Height: 46.4 mm, Width: 4 mm
68 AEL-53-CP1W-CIF01 RS-232C Option Board
70 AEL-53-CP1LL20DRA Micro PLC CPU with 20 I/O, Supply voltage: 100 to 240 VAC
72 AEL-53-3G3MX2AB004V1 AC Drive, 240V 1PH, 1/2HP 0.4KW
74 AEL-WA-210-112 Steel carrier rail, 35 X 7.5 mm, 1mm/0.039 in thick slotted
76 AEL-WA-280-901 2-conductor through terminal block
78 AEL-WA-280-402 Adjacent jumper nominal current 24 A insulated
80 AEL-WA-282-128/281-417 2-conductor fuse terminal block for glass cartridge type fuses
Item Part No. Part Name Price
82 GI3300-01-043 Din rail plate
84 AEL-ABB-S202U-K25 Miniature circuit breaker, Rated current 25.00 A
86 AEL-WA-280-308 End plate and intermediate plate, Color: Gray
88 AEL-53-3G3MX2AB007V1 AC Drive, 240V 1PH, 1 HP 0.75KW
90 AEL-WA-280-907 2-conductor through terminal block (Ground)
92 AUT-T1-1022G Thin finger duct grey 1in X 2.25in
94 ADA-46A-L00-JDAA-1GD 46A MAC VALVE
96 ADA-EBM46A-00AAA-06 Manifold valve 6 ports
Item Part No. Part Name Price
98 ADA-M-46002 46 Series MAC Blank cover
100 ADA-PC69SCB-44 Swivel male elbow 0.250 NPT x 0.250in OD
102 ADA-CPLS375-1/4 Swivel male elbow 0.25 NPT x 0.375 in  OD
104 ADA-PC68CBC-42 Straight Connector 0.125 NPT X 0.250 in OD
106 ADA-CPBR156-1/8 Straight Connector 0.125 NPT X 0.156 in OD
108 M1-02203198 End connection plug 0.125 NPT
110 M1-02203214 End connection plug 0.250 NPT
