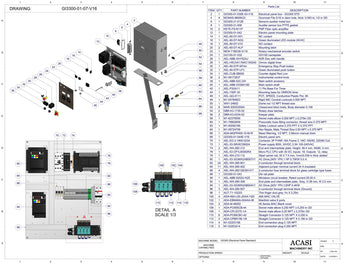

Overflow Bottle Filler GI3300 | Electric Panel Standard




FILLER SYSTEM & CHASSIS | ELECTRIC PANEL TOUCH

ELECTRIC PANEL STANDARD | PUMP AND TANK

PRESSURE OVERFLOW NOZZLES | BOTTOM UP NOZZLES

CENTERING GUIDES | COMBINATED SYSTEM | DRIP TRAYS

Item Part No. Part Name Price
2 GI3300-01-030E-03-V16 Electrical panel box - GI3300 STD
4 MCMAS-9600K23 Grommet Ftis 5/16 in diam hole, thick: 0.093 in, 1/2 in OD
6 GI3300-21-012E Metal auxiliar sensor box
8 GI3300-21-008 Auxiliar sensor box PTFE gasket
10 KEYE-FS-N11P PNP Fiber optic amplifier
12 GI3300-01-042 Electric panel mounting plate
14 REX-800F-X01 NC contact
16 REX-800F-N3G Green illuminated LED module 24VAC
Item Part No. Part Name Price
18 AEL-60-D7-X10 NO contact
20 AEL-60-D7-ALP Mounting latch
22 NEW-71BD36-3119 Rotary mechanical encoder switch
24 GI3100-01-032 Standard screen panel plate
26 AEL-ABB-OHYS2AJ N3R Disc with handle
28 AEL-H5CXA11AC100240 Omron digital timer
30 AEL-60-D7P-MT44 Emergency Stop Push button
32 AEL-60-D7P-LF3 Green iluminated push button
Item Part No. Part Name Price
34 AEL-CUB-5B000 Counter digital Red Lion
36 M1-06172837 Instrumental control knob
38 AEL-ABB-S2C-DH Main switch accesory
40 AEL-ABB-OXS6X180 Main switch shaft
42 AEL-P3GA11 11 Pin Base For Timer
44 AEL-Y92F-30 Mounting base for OMRON timer
46 AEL-QQ-9111 POT, SPEED, Conductive Plastic Pot, 5K
48 M1-04784823 Rigid IMC Counduit Locknuts 0.500 NPT
Item Part No. Part Name Price
50 WAY-24602 Dome nut 1/2 NPT thread size
52 MAR-SSD53SSH Closed-end blind rivets, Body diameter 0.156
54 DBR-K3-1735-52 Rotary draw latches
56 DBR-K3-0334-52 Keeper plate
58 M1-62378559 Swivel male elbow 0.500 NPT x 0.375in OD
60 M1-79802609 Pneumatic hose fitting connector, thread size 0.375 MPT
62 M1-00092189 Safety Lockout valve 0.375 FPT x 0.375 FPT
64 M1-09724709 Hex Nipple, Male Thread Size 0.50 NPT x 0.375 NPT
Item Part No. Part Name Price
66 ADA-MGFR400-15-M-W Mead filter/reg, 1/2 NPT, 5 Micron manual drain
68 GI3300-01-044E Electric panel arm
70 AEL-EO-3-1800-023A Contactor 3P FVNR 18A Frame C 1NO 190/50, 220/60 Coil
72 AEL-53-S8VKC06024 Power supply 60W, 24VDC 2.5A 100-240 VAC
74 AEL-WA-282-312 End and intermediate plate, Height: 46.4 mm, Width: 4 mm
76 AEL-53-CP1LM30DRA Micro PLC CPU with 30 I/O, Inputs: 18, Outputs: 12, relay
78 AEL-WA-210-112 Steel carrier rail, 35 X 7.5 mm, 1mm/0.039 in thick slotted
80 AEL-53-3G3MX2AB007V1 AC Drive, 240V 1PH, 1 HP 0.75KW 5.0 A
82 AEL-WA-280-901 2-conductor through terminal block
Item Part No. Part Name Price
84 AEL-WA-280-402 Adjacent jumper nominal current 24 A insulated
86 AEL-WA-282128/281417 2-conductor fuse terminal block for glass cartridge type fuses
88 GI3300-01-043 Din rail plate
90 AEL-ABB-S202U-K25 Miniature circuit breaker, Rated current 25.00 A
92 AEL-WA-280-308 End plate and intermediate plate, Gray, H 28 mm, W 2.5 mm
94 AEL-53-3G3MX2AB004V1 AC Drive, 240V 1PH, 1/2HP 0.4KW
96 AEL-WA-280-907 2-conductor through terminal block (Ground)
98 AUT-T1-1022G Thin finger duct grey 1in X 2.25in
100 ADA-46A-L00-JDAA-1GD 46A MAC Valve
Item Part No. Part Name Price
102 ADA-EBM46A-00AAA-06 Manifold valve 6 ports
104 ADA-M-46002 46 Series MAC Blank cover
106 ADA-PC69SCB-44 Swivel male elbow 0.250 NPT x 0.250 in OD
108 ADA-CPLS375-1/4 Swivel male elbow 0.250 NPT x 0.375 in OD
110 ADA-PC68CBC-42 Straight Connector 0.125 NPT x 0.250 in OD
112 ADA-CPBR156-1/8 Straight Connector 0.125 NPT x 0.156 in OD
114 M1-02203198 End connection plug 0.125 NPT
116 M1-02203214 End connection plug 0.250 NPT
