Overflow Bottle Filler GI3300 | Filler & Chassis System


FILLER SYSTEM & CHASSIS | ELECTRIC PANEL TOUCH

ELECTRIC PANEL TOUCH V19 | ELECTRIC PANEL STANDARD

PUMP AND TANK | DRIP TRAYS | CENTERING GUIDES

COMBINATED SYSTEM | PRESSURE OVERFLOW NOZZLES

BOTTOM UP NOZZLES

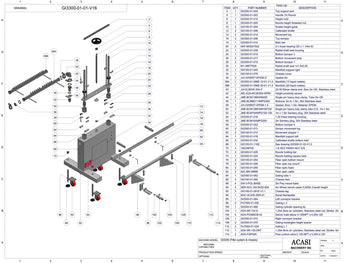

Item Part No. Part Name Price
2

GI3300-01-002

Top support part

4 Component ELS-77511

Handle 7inch round

6 GI3300-01-010 Height nut2
8 GI3300-01-020 Nozzle height threaded rod
10 GI3100-01-004 Scaled height guide
12 SKF-LJXR 20X36 ESSC2 Calibrated shafts
14 GI3300-01-012 Movement top
16 GI3300-01-008 Top bumper
Item Part No. Part Name Price
18 GI3300-01-014

Main bar

20 SKF-M/5201522 2 n linear bearing OD x 1 1/4in ID
22 GI3300-01-038

Radial shaft seal housing

24 GI3300-01-019 Bottom bumper 3
26 GI3300-01-017 Bottom movement stop
28 GI3300-01-015 Bottom bumper 1
30 M1-36677029 Radial shaft seal 1x1.5x0.25
32 GI3100-01-040 Manifold support right
34 GI3100-01-078 Chassis cover
Item Part No. Part Name Price
36 JUI-GASKET-EPMD-2" Gasket 2"
38A GI3300-01-096E-12-01-V1.0 Manifold 12 liquid outlets
38B GI3300-01-096E-20-01-V1.0 Manifold 20 liquid outlets
40 JUI-ELBOW-304-2" 3A 90 Elbow clamp end, Size 2in OD, Stainless steel 304
42

AEL-E2A-M12KS04-WPB1

Height proximity sensor

44 JME-BCM13MHHM200 Single pin heavy duty clamp, Tube 2in OD
46 JME-BCMB3114MPG200

Reducer 2in to 1.5in, 304 Stainless steel

Item Part No. Part Name Price
48 JUI-GASKET-EPDM-1.5 Gasket, Size: 1.5in, Material: EPDM
50 JME-BCM13MHHM100150 Single pin heavy duty clamp tube OD 1in-1.5in
52 JME-BCM16AMPG100-150 1in x 1.5in Sanitary plug, 304 Stainless steel
54 GI3300-01-016

1.25" linear bearing housing

56 JME-BCM16AMPG200 2in Sanitary plug, 304 Stainless steel
58 GI3300-01-022

Bottom bumper 4

60 GI3300-01-013 Sensor movement top
62 GI3100-01-012 Movement stopper 1
64 GI3100-01-018 Manifold support left
66 GI3300-01-034 Calibrated shafts bottom hold
68 GI3100-01-110E See drawing GI3300-01-03-V1.0
70 100CNFHS 1-8 Hex Finish Nut S/S
Item Part No. Part Name Price
72 GI3300-01-026

Nozzle holding bar

74 GI3300-01-024

Nozzle holding square tube

76 GI3100-01-054

Fiber optic bottom mount

78 GI3100-01-056

Fiber optic top mount

80 GI3100-01-055 Fiber optic head
82 AEL-BN-39996 Fiber optic cable
84 GI3300-01-062 Gating tube 1
86 GI3100-01-090 Chassis feet
88 SW-3-POL-BASE Poly mount base 3 1-8
90

SER-SCC-30CS420-929

4in Wheel swivel caster 5.625in Overall height
92

GI3100-01-091E-V1.1

Chassis leg
Item Part No. Part Name Price
94 MAC-ACASI-SER-01 Serial Nameplate
96 GI3300-01-064 Left conveyor bracket
98 PU7000-01-036 Gating L 2
100 GI3300-01-068 Gate cylinder spacing tip
102 ADA-SR-122-D 1.25in Bore air cylinders, Stainless steel rod, Stroke: 2in
104 ADA-PC69SCB-42 Swivel male elbow 0.125NPT x 0.125in OD
106 GI3300-01-072 Right conveyor bracket
108 GI3300-01-070 Gating rectangles height spacer
110 PU7000-01-038 Gating L 1
112 ADA-SR-125-DNT 1.25in Bore air cylinders, Stainless steel rod, Stroke: 5in
114 ADA-FQPS2K Flow control valve 0.125 NPT x 0.250in OD

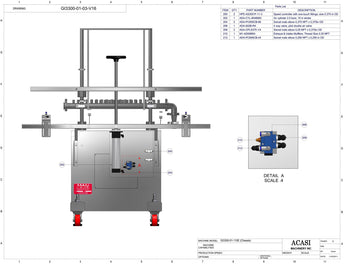

Item Part No. Part Name Price
200 HPE-AS3001F-11-3 Speed controller with one-touch fittings, size 0.75in OD
202 ADA-CYL-8546683 Air cylinder 2.5 bore, 10 in stroke
204 ADA-CPLS375-3/8 Swivel male elbow 0.375 NPT x 0.375in OD
206 ADA-922B-RA 4 way valve, pilot double air valve
208 ADA-CPLS375-1/4 Swivel male elbow 0.25NPT x 0.375in OD
210 M1-42008854 Exhaust & intake Muffieres, Thread Size 0.25 NPR
212 ADA-PC69SCB-44 Swivel male elbow 0.25NPT x 0.25in OD
