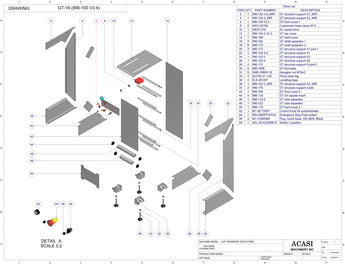

Gap Transfer - Model GT-16 | Structure


STRUCTURE   |  BELT SYSTEM

Item Part No. Part Name Price
2

996-102-4-2_MIR

GT structure support A1_MIR

4 996-102-4_MIR

GT structure support A2_MIR

6 996-108 V3.3 GT front cover 1
8 WAY-25106 Cushioned metal clamp No. 6
10 KBVF-21D AC speed drive
12 996-104-2 V3.3 GT top cover
14 996-168 GT back cover
16 996-162 GT shaft separator 1
18 996-174 GT shaft separator 2
Item Part No. Part Name Price
20

996-173

GT structure support A1 joint 1

22 996-102-4-2

GT structure support A1

24 996-103-3 GT structure support A3
26 996-102-4 GT structure support A2
28 996-170 GT structure support A joint 2
30 996-180E GT foot base
32 AME-HNMX-16 Hexagon nut M16x2
34 GI3100-01-138 Pump base leg
36 ELS-301251 Levelling base
Item Part No. Part Name Price
38

 996-103-3_MIR

GT structure support A3_MIR

40 996-176

GT structure support cover

42 996-166 GT front cover 2
44 996-116 GT 2in square insert
46 996-110-2 GT tube separator
48 996-122 GT tube separator
50 996-118 GT front cover 3
52 M1-06172837 Control Knob for potentiometer
54 REX-800FP-MT44 Emergency Stop Push button
56 M1-31992985 Plug, round head, OD 0625, Black
58 AEL-53-A22S2M10 Switch 2 position
