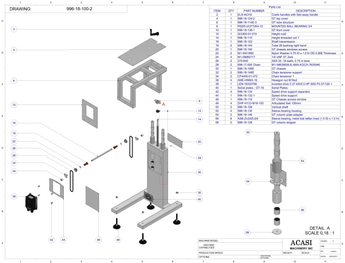

Gap Transfer - Model GT-16 | Structure (996-18-100-2)

Request a Quote

STRUCTURE | BELT SYSTEM

996-18-100-2 | 996-100 V3.4

Item	Part No.	Part Name	Price
2	ELS-44316	Crank Handles With Fold-Away Handle
4	996-18-124-2	GT Top Cover
6	996-18-114E-3	GT Top Structure
8	PEER-UCFT204-12	Mounted Ball Bearing 3/4
10	996-18-138-1	GT Front Cover
12	GI3300-01-010	Height Nut 2
14	996-18-110	Height Threaded Rod 1
16	996-18-122	Shaft Transmission
18	996-18-144	Tube 28 Bushing Right Hand

Item	Part No.	Part Name	Price
20	996-18-140	GT Chassis Window Access
22	M1-5401682	Nylon Washer 0.75 ID X 1.010 OD 0.066 Thickness
24	M1-08060717	1/4 UNF ST Zerk
26	370-640	ASA 35 , 18 Teeth , 0.75 in Bore
28	996-17-000 Chain	M1-58639006 & AMA-KOCH-7635040
30	996-18-106E	GT Chassis
32	996-18-148E	Chain Tensioner Support
34	CF4400-01-072	Chain Tensioner 1
36	AME-HNMX-16	Hexagon Nut M16X2

Item	Part No.	Part Name	Price
38	LEN-16330798	Inverted Drive 0.37 KW/0.5 HP i550-P0.37/120-1
40	MAC-ACASI-SER-01	Serial Plates
42	996-18-134	Speed Drive Support Separator
44	996-18-132-1	Speed Drive Support
46	996-18-118	GT Chassis Access Window
48	DHP-H133-M16-150	Articulated Feet 100mm
50	996-18-108	Vertical Shaft
52	996-18-130	Sleeve Bearing Housing
54	996-18-146	Gt Colum Plate Adapter
56	ASB-ZU24ZU24	Sleeve Bearing, Metal Back Teflon Lined ( 1.5 ID X 1.5 H)
58	996-18-128	GT Column Stopper
