Bottle Unscrambler Trusort-48 / 60 / SO | Transmission Box (560-000-1 Drawing 2.2)


BOTTLE TURNING | STRUCTURE    | TRANSMISION BOX

STEPPING ASSY     REAR GUIDE   | BOWL |  KICKER

SPACING BELTS   | BELT SYSTEM  |  BELT SYSTEM V21

ELECTRIC PANEL

__________________________________________________

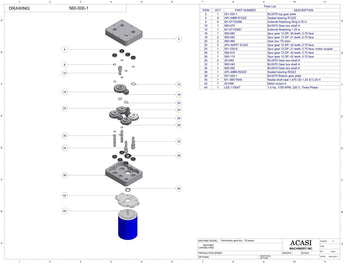

 560-160 Drawing 2.1 560-000-1 Drawing 2.2

Item Part No. Part Name Price
2 551-050-1 BU3070 top gear plate
4 APL-MBB-R12ZZ Sealed bearing R12ZZ
8 M1-67153288 External Retaining Ring 0,75 in
10 560-070 Gear box shaft A
12 M1-67153601 External Retaining 1.25 in
Item Part No. Part Name Price
16 560-080

 Spur gear 12 DP, 48 teeth, 0.75 face

18 560-090 Spur gear 12 DP, 21 teeth, 0.75 face
20 560-060 Gear box TS shim
22 APL-MART S1242 Spur gear 12 DP, 42 teeth, 0.75 face
24 551-030-E Spur gear 12 DP, 21 teeth, 0.75 face, motor coupler
26 560-010 Spur gear 12 DP, 42 teeth, 0.75 face
28 560-110 Spur gear 12 DP, 42 teeth, 0.75 face
30 201060 BU3070 Gear box shaft A
32 560-040 BU3070 Gear box shaft A
34 560-050 BU3070 Gear box shaft A
Item Part No. Part Name Price
36

 APL-MBB-R20ZZ

Sealed bearing R20ZZ
38 551-020-1 BU3070 Bottom gear plate
40 M1-36677649 Radial shaft seal 1.875 OD 1.25 ID 0.25 H
42 201090 Motor mount A
44 LEE-110047 1.0 Hp, 1750 RPM, 220 V, Three Phase
