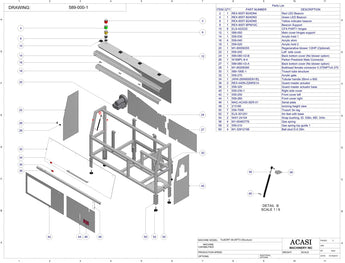

Bottle Unscrambler Model Trusort-48 | Structure


BOTTLE TURNING | STRUCTURE    | TRANSMISION BOX

STEPPING ASSY     REAR GUIDE   | BOWL |  KICKER

SPACING BELTS   | BELT SYSTEM  | ELECTRIC PANEL

Item Part No. Part Name Price
2

REX-855T-B24DN4

Red LED beacon

4 REX-855T-B24DN3

Green LED beacon

6 REX-855T-B24DN5 Yellow indicator beacon
8 REX-855T-BPM10C Beacon support
10 ELS-422232 CFA PART 1 hinges
12 589-050 Main cover hinges support
14 559-030 Acrylic hold 1
16 559-040 Acrylic shim
Item Part No. Part Name Price
18

559-020

Acrylic hold 2

20 M1-80059355

Regenerative blower 1/2HP (Optional)

22 559-240 Left  side cover
24 589-080-V2-B Back bottom cover (No blower option)
26 W169PL-6-4 Parker prestolok male connector
27 589-080-V2-A Back bottom cover (No blower option)
28 M1-80258395 Bulkhead female connector 0.375NPTx0.375
30 589-190E Trusort tube structure
32 559-270 Acrylic gate
34 JWW-28W600D91/EL Tubular handle 28mm x 600
Item Part No. Part Name Price
36

REX-440N-Z2NRS1A

Guard master actuator

38 559-320 Guard master actuator base
40 559-230 Right side cover
42 559-250 Front cover left
44 559-260 Front cover right
46 MAC-ACASI-SER-01 Serial plate
48 213160 Lonizing height view
50 559-700E Trusort 3in leg
Item Part No. Part Name Price
52

ELS-301251

4in feet with base

54 WAY-24104

Snap bushing, ID. 5/8in, MD. 3/4in

56 M1-00483776 Gas spring
58 559-210 Gas spring top guide 1
60 M1-32912198 Ball stud D-0.39in
