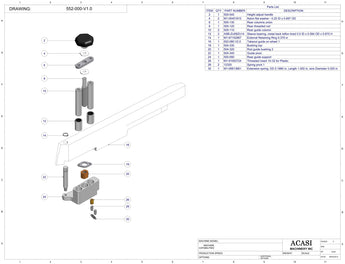

Bottle Unscrambler Trusort-48 / 60 / SO | Rear Guide


BOTTLE TURNING | STRUCTURE    | TRANSMISION BOX

STEPPING ASSY     REAR GUIDE   | BOWL |  KICKER

SPACING BELTS   | BELT SYSTEM  | ELECTRIC PANEL

Item Part No. Part Name Price
2

500-540

Height adjust handle
4 M1-05401815

Nylon flat washer - 0.25 ID x 0.697 OD

6 500-130 Rear columns union
8 500-120 Rear threaded rod
10 500-110 Rear guide column
12 ASB-ZU08ZU14 Sleeve bearing teflon 0.5 ID x 0.594 OD x 0.875 H
14 M1-67152967 External Retaining Ring 0.375 in
16 552-080 V2.0 Take-out guide on wheel 1
Item Part No. Part Name Price
18 504-330 Bushing top
20 504-320 Rod guide bushing 2
22 504-340 Guide pivot
24 500-090 Rear guide support
26 M1-91093724 Threaded insert 10-32 for Plastic
28 12320 Spring pivot 1
30 M1-06813661 Extension sping; OD 0.1880 in, Length 1.000 in, wire Diameter 0.020 in
