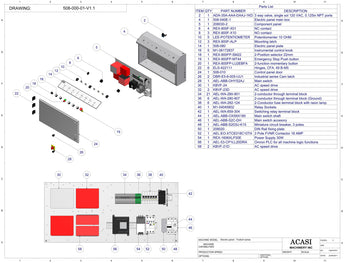

Bottle Unscrambler Model TruSort-48 / 60 / SO | Electric Panel


BOTTLE TURNING | STRUCTURE | TRANSMISION BOX

STEPPING ASSY REAR GUIDE | BOWL | KICKER

SPACING BELTS | BELT SYSTEM | ELECTRIC PANEL

Item Part No. Part Name Price
2

ADA-35A-AAA-DAAJ-1KD

3 way valve, single sol 120 VAC
4 508-040E-1 Electric panel main box
5 208030-2 Electric panel mounting plate
6 REX-800F-X01 NC contact
8 REX-800F-X10 NO contact
10 LEE-POTENTIOMETER Potentiomenter 10 OHM
12 REX-800F-ALP Mounting latch
Item Part No. Part Name Price
14 508-080 Electric panel plate
16 M1-06172837 Instrumental control knob
18 REX-800FP-SM22 2-Position selector 22mm
19 REX-800FP-MT44 Emergency Stop Push button
20 REX-800FP-LU2EBFA 2-function momentary button
22 ELS-422111 Hinges, CFA. 49 B-M5
24 508-010 Control panel door
26 DBR-E5-6-005-UU1 Industrial series Cam latch
28 AEL-ABB-OHYS2AJ Main switch
30 KBVF-24 AC speed drive
Item Part No. Part Name Price
32

KBVF-23D

AC speed drive
34 AEL-WA-280-901

2-conductor through terminal block

36 AEL-WA-280-907 2-conductor through terminal block (Ground)
38 AEL-WA-282-124 2-Conductor fuse terminal block with neon lamp
40 M1-54045802 Relay Sockets
42 AEL-WA-859-304 Switching relay terminal block
44 AEL-ABB-OXS6X180 Main switch shaft
46 AEL-ABB-S2C-DH Main switch accesory
Item Part No. Part Name Price
48 AEL-ABB-S203U-K15 Miniature circuit breaker, 3 poles
50 208020 DIN Rail fixing plate
52 AEL-EO-XTCE018C10TA 3 Pole FVNR Contactor 18 AMP
54 REX-1606XLP30E Power Supply 30W
56 AEL-53-CP1LL20DRA Omron PLC for all machine logic functions
58 KBVF-21D AC speed drive
