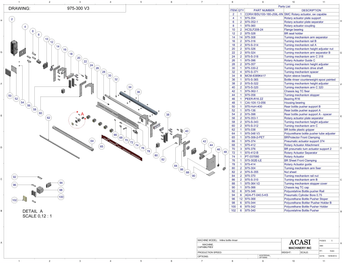

Automatic Inline Bottle Cleaner Model BR15 | Clamping And Turning Mechanism (975-300 V3)
$ 0.00 USD
/
STRUCTURE- TRAY AND COVERS | ELECTRIC PANEL TOUCH
TANK | RINSER SYSTEM | CLAMPING AND TURNING MECHANISM
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 2 | CDRA1BSU100-180-J59L-XN | Rotary Actuator |  |
| 4 | 975-354 | Rotary actuator plate support | |
| 6 | 975-352-1 | Rotary actuator plate separator | |
| 8 | 975-360 | Rotary actuator coupling | |
| 10 | HCSLF208-24 | UCF208-24, UCF - Four-Bolt Flanged Unit | |
| 12 | 975-328 | BR seal holder | |
| 14 | 975-308 | Turning mechanism arm Separator | |
| 16 | 975-316 | Turning mechanism rail B | |
| 18 | 975-S-314 | Turning mechanism rail A | |
| 20 | 975-326 | Turning mechanism height adjuster nut | |
| 22 | 975-324 | Turning mechanism arm separator B | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 24 | 975-S-318 | Turning mechanism arm C 318 | |
| 26 | 975-396 | Rotary Actuator Guide C | |
| 28 | 975-357 | Turning mechanism Height Adjuster | |
| 30 | 975-330-2 | Turning mechanism drive shaft | |
| 32 | 975-S-371 | Turning mechanism Spacer | |
| 34 | MCM-6389K417 |
Nylon Sleeve Bearing | |
| 36 | 975-S-365 | Bottle Rinser Counterweight Epoxi Painted | |
| 38 | 975-S-322 | Turning mechanism Height Adjuster | |
| 40 | 975-S-320 | Turning mechanism arm C 320 | |
| 42 | 975-362-1 | Chassis Leg TC Fixer | |
| 44 | 975-358 | Turning mechanism stopper | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 46 | PEER-77R16 | Bearing R16 | |
| 48 | CAI-10X-13-056 | Housing bearing | |
| 50 | 975-HoH-400 | Rear Bottle Pusher Support B | |
| 52 | 975-136 | Rear Bottle Pusher Support A | |
| 54 | 975-398 | Rear Bottle Pusher Support A-Spacer | |
| 56 | 975-353-1 | Rotary Actuator Plate Separator | |
| 58 | 975-S-343 | Turning Mechanism Height Adjuster | |
| 60 | 975-S-312 | Turning Mechanism Arm C | |
| 62 | 975-338 | BR Bottle Plastic Gripper | |
| 64 | 975-348 V3 | Polyurethane Bottle Pusher Tube Adjuster | |
| 65 | 975-306-2-PET | BR Protector Front Clamping | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 66 | 975-374 | Pneumatic Actuator Support 374 | |
| 68 |
975-412 | Rotary Actuator Attachment | |
| 70 |
975-376 | Rotary actuator arm | |
| 72 | 975-412-B | Rotary Actuator Separator | |
| 74 |
PT-037090 | Rotary Actuator | |
| 76 | 975-302E-LE | BR Sheet Front Clamping | |
| 78 | 975-414 | Rotary Actuator Guide | |
| 80 | 975-304 | Turning Mechanism Arm Fixer | |
| 82 | 975-S-355 | Nut Sheet | |
| 84 | 975-370 | Turning Mechanism Rail Nut | |
| 86 | 975-S-310 | Turning Mechanism Arm B | |
| 88 | 975-364 V2 | Turning Mechanism Stopper Cover | |
| 90 | 975-366 | Chassis Leg TC Cap | |
| 92 | 975-346 | Polyurethane Bottle Pusher Rail | |
| 94 | ADA-FT-040.5-KS | Pneumatic Cylinder Bore 0.75 | |
| 96 | 975-368 | Polyurethane Bottle Pusher Stoper | |
| 98 | 975-344 | Polyurethane Bottle Pusher Pusher Holder B | |
| 100 | 975-342 | Polyurethane bottle pusher holder | |
| 102 | 975-340 | Polyurethane bottle pusher | |
