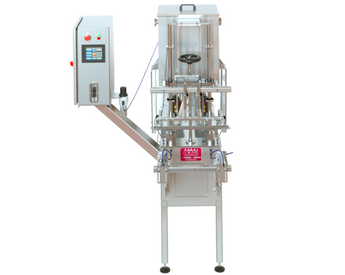

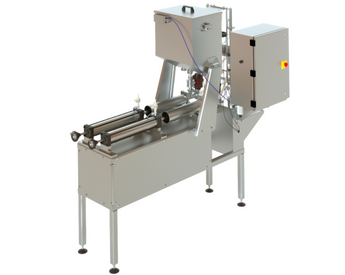

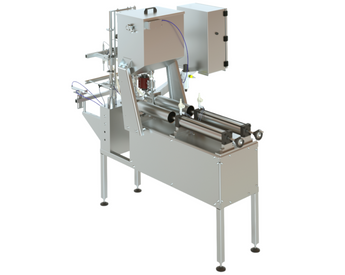

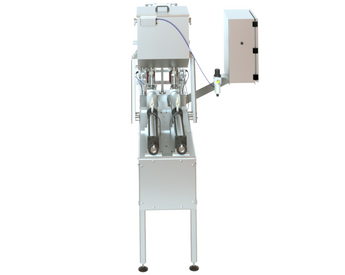

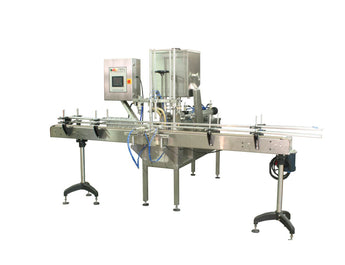

Piston Filler- Model TruPiston-2-SH



Construction features:

  • Pneumatic driven with independent adjustment for each piston.
  • Capable of handling breakable particles up to ¾ in diameter.
  • Reservoir tank mounted directly above rotary valves for direct product feed.
  • Heavy duty 304 stainless steel welded frame construction.
  • 3 way rotary valves.
  • All contact parts are stainless steel, sanitary, teflon, buna, viton.

Control panel features:

  • Omron PLC for all machine logic functions.
  • Conveyor speed control for machine sold with conveyor.
  • Front panel mounted bottle counter.
  • Front panel Start and Emergency STOP for easy access.
  • Fiber optic sensors by Omron standard for container gating.
  • No bottle no fill PLC controlled.

Standard features:

  • Nozzle spacing fully adjustable.
  • Container height adjustment.
  • Nozzle stroke adjustments.
  • Adjustable entry and exit bottle gating cylinders.
  • Works with plastic or glass containers.
  • No change parts needed for various types of containers.

Electric and pneumatic requirements:

  • 220 Volts, 60Hz, 15 Amps.
  • 5 CFM @ 80 psi.
