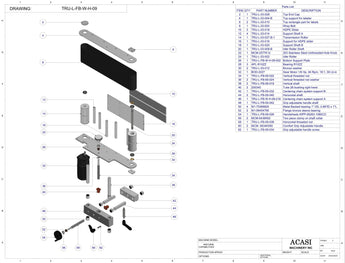

Wrap Around Labeler Model Tru-Labeler-W1 | Wrap System-Belt


TUBE STRUCTURE & CONVEYOR | LABELING HEAD SYSTEM WITH PRINTER|ELECTRIC PANEL TOUCH | WRAP SYSTEM-BELT |WRAP SYSTEM- BOTTLE SUPPORT| SPACING WHEEL



Item Part No. Part Name Price
2 TRU-L-03-028 Top End Cap
4 TRU-L-03-004-B Top Support For Labeler
6 TRU-L-03-010 Top Rectangle Part For Labels
8 TRU-L-03-054 Wrap Belt
10 TRU-L-03-018 HDPE Slider
12 TRU-L-03-014 Support Shaft A
14 TRU-L-03-027-B-1 Transmission Roller
16 TRU-L-03-016 Support For HDPE Slider
18 TRU-L-03-020 Support Shaft B
20 TRU-L-03-008-B Idler Roller Shaft
Item Part No. Part Name Price
22
MCM-2577K12 303 Stainless Steel Unthreaded-Hole Knob
24
TRU-L-03-002 Idler Roller
26
TRU-L-FB-W-H-09-002 Bottom Support Plate
28
APL-R10ZZ Bearing R10ZZ
30
TRU-L-03-012 Bronze Washer
32
BOD-N2227 Gear Motor 1/6 Hp, 94 Rpm, 18: 1, 39 Lb-in
34
TRU-L-FB-09-022 Vertical Threaded Rod
36 TRU-L-FB-09-024 Vertical Threaded Rod Washer
38 TRU-L-FB-09-018 Vertical Shaft
40
200340 Tube 28 Bushing Right Hand
42
TRU-L-FB-09-032 Centering Chain System Support B



Item Part No. Part Name Price
44 TRU-L-FB-09-040 Horizontal Shaft
46 TRU-L-FB-W-H-09-016 Centering Chain System Support A
48 TRU-L-FB-09-042 Grip Adjustable Handle Shaft
50
M1-75368829 Metal Backed Bearing 1" OD, 0.88" ID X 1"L
52
M1-06454706 Flange Bronze Sleeve Bearing
54
TRU-L-FB-09-026 Handwheels KIPP-06263-1080CO
56
MCM-6436K62 Two Piece Clamp on Shaft Collar
58
TRU-L-FB-09-038 Horizontal Threaded Rod
60
MCM-5634K590 Comfort Grip Adjustable Handle
62
TRU-L-FB-09-034 Grip Adjustable Handle Screw
